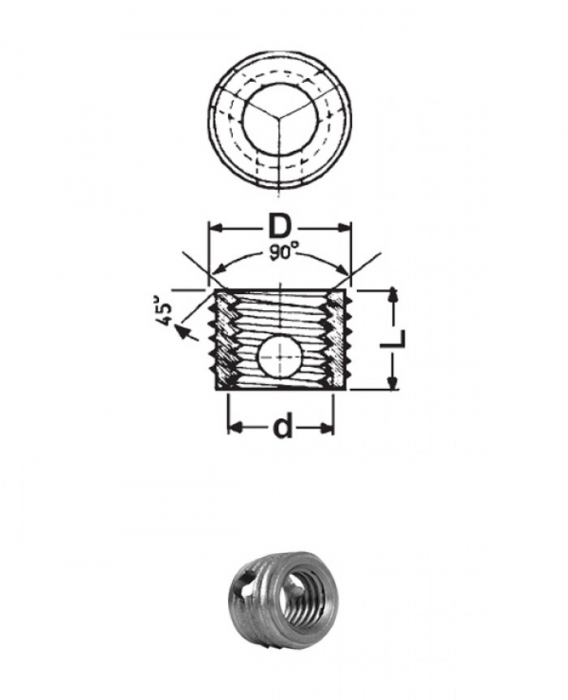

Bussole autofilettanti - Acciaio temprato
Codice |
D |
|
L |
|
d |
|
|---|---|---|---|---|---|---|
| 83ACF318M04‑C | 6.5 x 0.8 | 6.0 - 6.2 | 6 | 8 | M4.0 x 0.7 | Scheda |
| 83ACF318M04‑L | 6.5 x 0.8 | 6.0 - 6.2 | 8 | 10 | M4.0 x 0.7 | Scheda |
| 83ACF318M05‑C | 8.0 x 1.0 | 7.4 - 7.7 | 7 | 9 | M5.0 x 0.8 | Scheda |
| 83ACF318M05‑L | 8.0 x 1.0 | 7.4 - 7.7 | 10 | 13 | M5.0 x 0.8 | Scheda |
| 83ACF318M06‑C | 10.0 x 1.25 | 9.3 - 9.6 | 8 | 10 | M6.0 x 1.0 | Scheda |
| 83ACF318M06‑L | 10.0 x 1.25 | 9.3 - 9.6 | 12 | 15 | M6.0 x 1.0 | Scheda |
| 83ACF318M08‑C | 12.0 x 1.5 | 11.1 - 11.5 | 9 | 11 | M8.0 x 1.25 | Scheda |
| 83ACF318M08‑L | 12.0 x 1.5 | 11.1 - 11.5 | 14 | 17 | M8.0 x 1.25 | Scheda |
| 83ACF318M10‑C | 14.0 x 1.5 | 13.1 - 13.5 | 10 | 13 | M10.0 x 1.5 | Scheda |
| 83ACF318M10‑L | 14.0 x 1.5 | 13.1 - 13.5 | 18 | 22 | M10.0 x 1.5 | Scheda |
| 83ACF318M12‑C | 16.0 x 1.75 | 15.0 - 15.4 | 12 | 15 | M12.0 x 1.75 | Scheda |
| 83ACF318M12‑L | 16.0 x 1.75 | 15.0 - 15.4 | 22 | 26 | M12.0 x 1.75 | Scheda |
| 83ACF318M14‑C | 18.0 x 2.0 | 17.0 - 17.4 | 14 | 17 | M14.0 x 2.0 | Scheda |
| 83ACF318M14‑L | 18.0 x 2.0 | 17.0 - 17.4 | 24 | 28 | M14.0 x 2.0 | Scheda |
| 83ACF318M16‑C | 20,0 x 2,0 | 19,0 - 19,4 | 14 | 17 | M16.0 x 2,0 | Scheda |
| 83ACF318M16‑L | 20,0 x 2,0 | 19,0 - 19,4 | 24 | 28 | M16 x 2.0 | Scheda |
