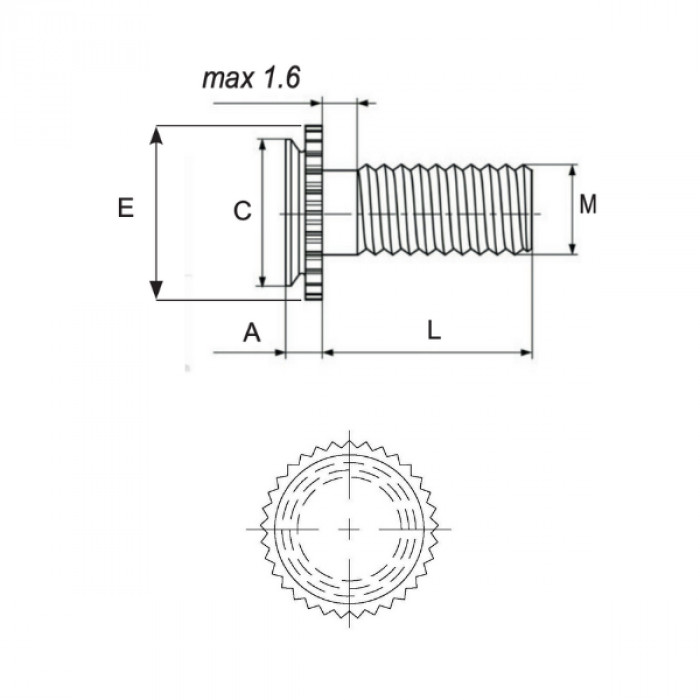

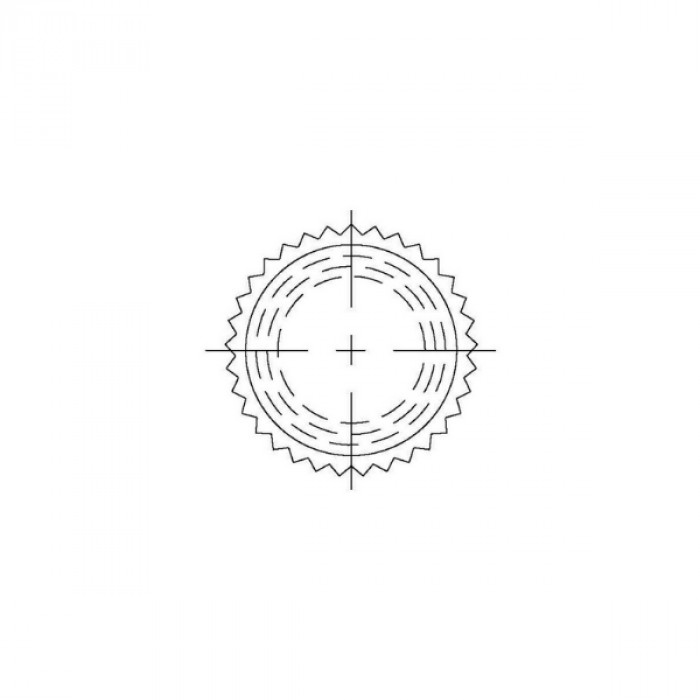

Perni per fori ciechi
per lamiere fino a 50 HRB
Codice |
Profondità |
Filetto |
Filetto |
A Max |
C Max |
E Max |
Foro +0.08 |
L ±0.4 |
Spess. |
Distanza |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15CFHCAM3‑06 | 2.31 | M3x0.5 | M3x0.5 | 1.8 | 4.35 | 5.21 | 4.37 | 6 | 2.4 | 4 | Scheda |
| 15CFHCAM3‑08 | 2.31 | M3x0.5 | M3x0.5 | 1.8 | 4.35 | 5.21 | 4.37 | 8 | 2.4 | 4 | Scheda |
| 15CFHCAM3‑10 | 2.31 | M3x0.5 | M3x0.5 | 1.8 | 4.35 | 5.21 | 4.37 | 10 | 2.4 | 4 | Scheda |
| 15CFHCAM3‑12 | 2.31 | M3x0.5 | M3x0.5 | 1.8 | 4.35 | 5.21 | 4.37 | 12 | 2.4 | 4 | Scheda |
| 15CFHCAM3‑16 | 2.31 | M3x0.5 | M3x0.5 | 1.8 | 4.35 | 5.21 | 4.37 | 16 | 2.4 | 4 | Scheda |
| 15CFHCAM3‑20 | 2.31 | M3x0.5 | M3x0.5 | 1.8 | 4.35 | 5.21 | 4.37 | 20 | 2.4 | 4 | Scheda |
| 15CFHCAM4‑06 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 6 | 2.4 | 5.6 | Scheda |
| 15CFHCAM4‑08 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 8 | 2.4 | 5.6 | Scheda |
| 15CFHCAM4‑10 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 10 | 2.4 | 5.6 | Scheda |
| 15CFHCAM4‑12 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 12 | 2.4 | 5.6 | Scheda |
| 15CFHCAM4‑16 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 16 | 2.4 | 5.6 | Scheda |
| 15CFHCAM4‑20 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 20 | 2.4 | 5.6 | Scheda |
| 15CFHCAM4‑25 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 25 | 2.4 | 5.6 | Scheda |
| 15CFHCAM5‑10 | 2.31 | M5x0.8 | M5x0.8 | 1.8 | 7.9 | 9.29 | 8.33 | 10 | 2.4 | 6.4 | Scheda |
| 15CFHCAM5‑12 | 2.31 | M5x0.8 | M5x0.8 | 1.8 | 7.9 | 9.29 | 8.33 | 12 | 2.4 | 6.4 | Scheda |
| 15CFHCAM5‑16 | 2.31 | M5x0.8 | M5x0.8 | 1.8 | 7.9 | 9.29 | 8.33 | 16 | 2.4 | 6.4 | Scheda |
| 15CFHCAM5‑20 | 2.31 | M5x0.8 | M5x0.8 | 1.8 | 7.9 | 9.29 | 8.33 | 20 | 2.4 | 6.4 | Scheda |
| 15CFHCAM5‑25 | 2.31 | M5x0.8 | M5x0.8 | 1.8 | 7.9 | 9.29 | 8.33 | 25 | 2.4 | 6.4 | Scheda |
