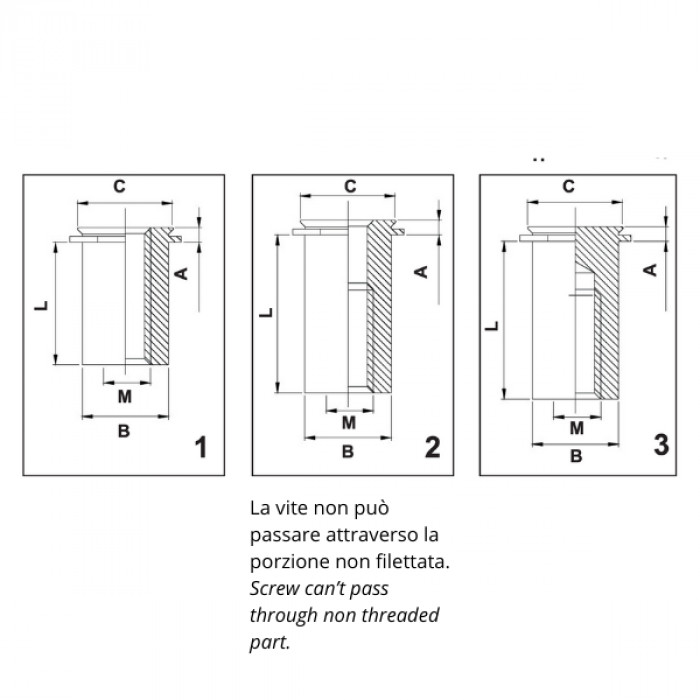

Colonnine autofissanti per fori ciechi
per lamiere fino a 70 HRB
Codice |
Tipo |
Profondità |
Filetto |
A Max |
B Max |
H |
C Max |
Foro +0.08 |
L |
Spess. |
Distanza |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15CSOSM3‑04 | 1 | 2.31 | M3 x 0.5 | 2.23 | 4.2 | 6.35 | 5.39 | 5.41 | 4 | 2.4 | 4.8 | Scheda |
| 15CSOSM3‑06 | 1 | 2.31 | M3 x 0.5 | 2.23 | 4.2 | 6.35 | 5.39 | 5.41 | 6 | 2.4 | 4.8 | Scheda |
| 15CSOSM3‑08 | 3 | 2.31 | M3 x 0.5 | 2.23 | 4.2 | 6.35 | 5.39 | 5.41 | 8 | 2.4 | 4.8 | Scheda |
| 15CSOSM3‑10 | 3 | 2.31 | M3 x 0.5 | 2.23 | 4.2 | 6.35 | 5.39 | 5.41 | 10 | 2.4 | 4.8 | Scheda |
| 15CSOSM3‑12 | 3 | 2.31 | M3 x 0.5 | 2.23 | 4.2 | 6.35 | 5.39 | 5.41 | 12 | 2.4 | 4.8 | Scheda |
| 15CSOSM3‑16 | 3 | 2.31 | M3 x 0.5 | 2.23 | 4.2 | 6.35 | 5.39 | 5.41 | 16 | 2.4 | 4.8 | Scheda |
| 15CSOSM3‑20 | 3 | 2.31 | M3 x 0.5 | 2.23 | 4.2 | 6.35 | 5.39 | 5.41 | 20 | 2.4 | 4.8 | Scheda |
| 15CSOSM3‑25 | 3 | 2.31 | M3 x 0.5 | 2.23 | 4.2 | 6.35 | 5.39 | 5.41 | 25 | 2.4 | 4.8 | Scheda |
| 15CSOSM3‑04 | 1 | 2.31 | M4 x 0.7 | 2.23 | 6.23 | 9.14 | 7.9 | 8.32 | 4 | 2.4 | 6.4 | Scheda |
| 15CSOSM3‑06 | 1 | 2.31 | M4 x 0.7 | 2.23 | 6.23 | 9.14 | 7.9 | 8.32 | 6 | 2.4 | 6.4 | Scheda |
| 15CSOSM3‑08 | 2 | 2.31 | M4 x 0.7 | 2.23 | 6.23 | 9.14 | 7.9 | 8.32 | 8 | 2.4 | 6.4 | Scheda |
| 15CSOSM3‑10 | 3 | 2.31 | M4 x 0.7 | 2.23 | 6.23 | 9.14 | 7.9 | 8.32 | 10 | 2.4 | 6.4 | Scheda |
| 15CSOSM3‑12 | 3 | 2.31 | M4 x 0.7 | 2.23 | 6.23 | 9.14 | 7.9 | 8.32 | 12 | 2.4 | 6.4 | Scheda |
| 15CSOSM3‑16 | 3 | 2.31 | M4 x 0.7 | 2.23 | 6.23 | 9.14 | 7.9 | 8.32 | 16 | 2.4 | 6.4 | Scheda |
| 15CSOSM3‑20 | 3 | 2.31 | M4 x 0.7 | 2.23 | 6.23 | 9.14 | 7.9 | 8.32 | 20 | 2.4 | 6.4 | Scheda |
| 15CSOSM3‑25 | 3 | 2.31 | M4 x 0.7 | 2.23 | 6.23 | 9.14 | 7.9 | 8.32 | 25 | 2.4 | 6.4 | Scheda |
| 15CSOSM5‑04 | 1 | 2.31 | M5 x 0.8 | 2.23 | 7.37 | 9.53 | 9.12 | 9.14 | 4 | 2.4 | 7.2 | Scheda |
| 15CSOSM5‑06 | 1 | 2.31 | M5 x 0.8 | 2.23 | 7.37 | 9.53 | 9.12 | 9.14 | 6 | 2.4 | 7.2 | Scheda |
| 15CSOSM5‑08 | 1 | 2.31 | M5 x 0.8 | 2.23 | 7.37 | 9.53 | 9.12 | 9.14 | 8 | 2.4 | 7.2 | Scheda |
| 15CSOSM5‑10 | 2 | 2.31 | M5 x 0.8 | 2.23 | 7.37 | 9.53 | 9.12 | 9.14 | 10 | 2.4 | 7.2 | Scheda |
| 15CSOSM5‑12 | 2 | 2.31 | M5 x 0.8 | 2.23 | 7.37 | 9.53 | 9.12 | 9.14 | 12 | 2.4 | 7.2 | Scheda |
| 15CSOSM5‑16 | 3 | 2.31 | M5 x 0.8 | 2.23 | 7.37 | 9.53 | 9.12 | 9.14 | 16 | 2.4 | 7.2 | Scheda |
| 15CSOSM5‑20 | 3 | 2.31 | M5 x 0.8 | 2.23 | 7.37 | 9.53 | 9.12 | 9.14 | 20 | 2.4 | 7.2 | Scheda |
| 15CSOSM5‑25 | 3 | 2.31 | M5 x 0.8 | 2.23 | 7.37 | 9.53 | 9.12 | 9.14 | 25 | 2.4 | 7.2 | Scheda |
| 15CSOSM6‑04 | 1 | 2.31 | M6 x 1.0 | 2.23 | 9 | 11.1 | 10.29 | 9.9 | 4 | 2.4 | 9.5 | Scheda |
| 15CSOSM6‑06 | 1 | 2.31 | M6 x 1.0 | 2.23 | 9 | 11.1 | 10.29 | 9.9 | 6 | 2.4 | 9.5 | Scheda |
| 15CSOSM6‑08 | 1 | 2.31 | M6 x 1.0 | 2.23 | 9 | 11.1 | 10.29 | 9.9 | 8 | 2.4 | 9.5 | Scheda |
| 15CSOSM6‑10 | 2 | 2.31 | M6 x 1.0 | 2.23 | 9 | 11.1 | 10.29 | 9.9 | 10 | 2.4 | 9.5 | Scheda |
| 15CSOSM6‑12 | 2 | 2.31 | M6 x 1.0 | 2.23 | 9 | 11.1 | 10.29 | 9.9 | 12 | 2.4 | 9.5 | Scheda |
| 15CSOSM6‑16 | 3 | 2.31 | M6 x 1.0 | 2.23 | 9 | 11.1 | 10.29 | 9.9 | 16 | 2.4 | 9.5 | Scheda |
| 15CSOSM6‑20 | 3 | 2.31 | M6 x 1.0 | 2.23 | 9 | 11.1 | 10.29 | 9.9 | 20 | 2.4 | 9.5 | Scheda |
| 15CSOSM6‑25 | 3 | 2.31 | M6 x 1.0 | 2.23 | 9 | 11.1 | 10.29 | 9.9 | 25 | 2.4 | 9.5 | Scheda |
