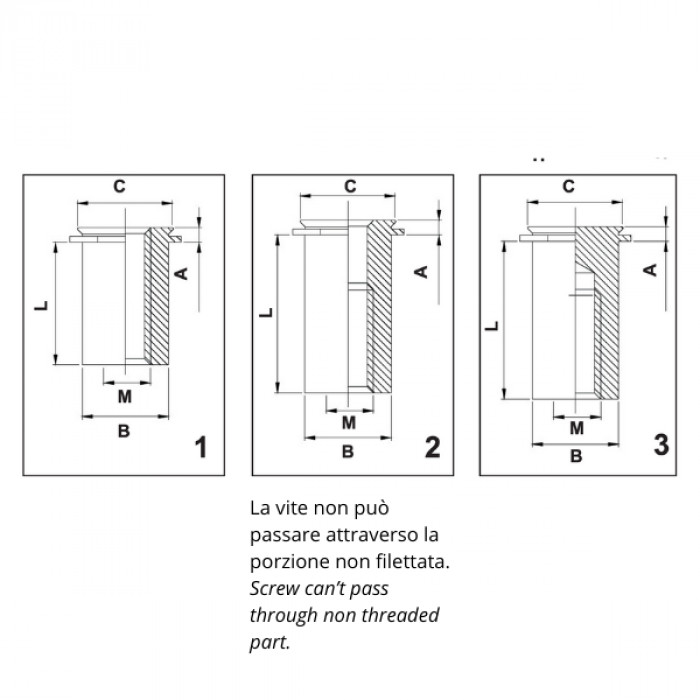

Colonnine autofissanti per fori ciechi
per lamiere fino a 70 HRB
Codice |
Tipo |
Profondità |
Filetto |
A Max |
B Max |
H |
C Max |
Foro +0.08 |
L |
Spess. |
Distanza |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15CSSM3‑04 | 1 | 1.1 | M3x0.5 | 1.04 | 4.2 | 6.35 | 5.39 | 5.41 | 4 | 1.6 | 4.8 | Scheda |
| 15CSSM3‑06 | 1 | 1.1 | M3x0.5 | 1.04 | 4.2 | 6.35 | 5.39 | 5.41 | 6 | 1.6 | 4.8 | Scheda |
| 15CSSM3‑08 | 2 | 1.1 | M3x0.5 | 1.04 | 4.2 | 6.35 | 5.39 | 5.41 | 8 | 1.6 | 4.8 | Scheda |
| 15CSSM3‑10 | 3 | 1.1 | M3x0.5 | 1.04 | 4.2 | 6.35 | 5.39 | 5.41 | 10 | 1.6 | 4.8 | Scheda |
| 15CSSM3‑12 | 3 | 1.1 | M3x0.5 | 1.04 | 4.2 | 6.35 | 5.39 | 5.41 | 12 | 1.6 | 4.8 | Scheda |
| 15CSSM3‑16 | 3 | 1.1 | M3x0.5 | 1.04 | 4.2 | 6.35 | 5.39 | 5.41 | 16 | 1.6 | 4.8 | Scheda |
| 15CSSM3‑20 | 3 | 1.1 | M3x0.5 | 1.04 | 4.2 | 6.35 | 5.39 | 5.41 | 20 | 1.6 | 4.8 | Scheda |
| 15CSSM3‑25 | 3 | 1.1 | M3x0.5 | 1.04 | 4.2 | 6.35 | 5.39 | 5.41 | 25 | 1.6 | 4.8 | Scheda |
| 15CSSM4‑04 | 1 | 1.1 | M4x0.7 | 1.04 | 6.23 | 9.14 | 7.9 | 8.32 | 4 | 1.6 | 6.4 | Scheda |
| 15CSSM4‑06 | 1 | 1.1 | M4x0.7 | 1.04 | 6.23 | 9.14 | 7.9 | 8.32 | 6 | 1.6 | 6.4 | Scheda |
| 15CSSM4‑08 | 2 | 1.1 | M4x0.7 | 1.04 | 6.23 | 9.14 | 7.9 | 8.32 | 8 | 1.6 | 6.4 | Scheda |
| 15CSSM4‑10 | 2 | 1.1 | M4x0.7 | 1.04 | 6.23 | 9.14 | 7.9 | 8.32 | 10 | 1.6 | 6.4 | Scheda |
| 15CSSM4‑12 | 3 | 1.1 | M4x0.7 | 1.04 | 6.23 | 9.14 | 7.9 | 8.32 | 12 | 1.6 | 6.4 | Scheda |
| 15CSSM4‑16 | 3 | 1.1 | M4x0.7 | 1.04 | 6.23 | 9.14 | 7.9 | 8.32 | 16 | 1.6 | 6.4 | Scheda |
| 15CSSM4‑20 | 3 | 1.1 | M4x0.7 | 1.04 | 6.23 | 9.14 | 7.9 | 8.32 | 20 | 1.6 | 6.4 | Scheda |
| 15CSSM4‑25 | 3 | 1.1 | M4x0.7 | 1.04 | 6.23 | 9.14 | 7.9 | 8.32 | 25 | 1.6 | 6.4 | Scheda |
| 15CSSM5‑04 | 1 | 1.1 | M5x0.8 | 1.04 | 7.37 | 9.53 | 9.12 | 9.14 | 4 | 1.6 | 7.2 | Scheda |
| 15CSSM5‑06 | 1 | 1.1 | M5x0.8 | 1.04 | 7.37 | 9.53 | 9.12 | 9.14 | 6 | 1.6 | 7.2 | Scheda |
| 15CSSM5‑08 | 1 | 1.1 | M5x0.8 | 1.04 | 7.37 | 9.53 | 9.12 | 9.14 | 8 | 1.6 | 7.2 | Scheda |
| 15CSSM5‑10 | 2 | 1.1 | M5x0.8 | 1.04 | 7.37 | 9.53 | 9.12 | 9.14 | 10 | 1.6 | 7.2 | Scheda |
| 15CSSM5‑12 | 2 | 1.1 | M5x0.8 | 1.04 | 7.37 | 9.53 | 9.12 | 9.14 | 12 | 1.6 | 7.2 | Scheda |
| 15CSSM5‑16 | 3 | 1.1 | M5x0.8 | 1.04 | 7.37 | 9.53 | 9.12 | 9.14 | 16 | 1.6 | 7.2 | Scheda |
| 15CSSM5‑20 | 3 | 1.1 | M5x0.8 | 1.04 | 7.37 | 9.53 | 9.12 | 9.14 | 20 | 1.6 | 7.2 | Scheda |
| 15CSSM5‑25 | 3 | 1.1 | M5x0.8 | 1.04 | 7.37 | 9.53 | 9.12 | 9.14 | 25 | 1.6 | 7.2 | Scheda |
