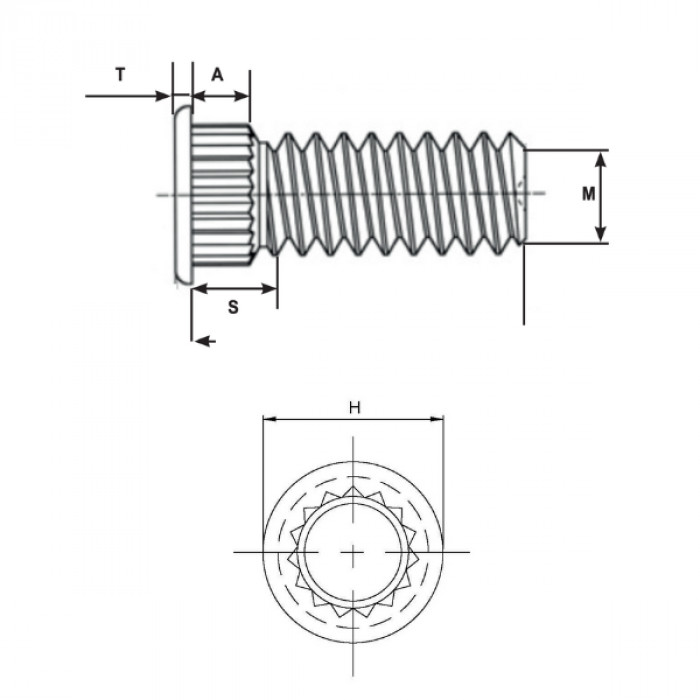

Perni autofissanti per circuiti stampati
per lamiere fino a 55 hrb
Codice |
S Max |
Filetto |
T ±0.13 |
A Max |
H ±0.25 |
Foro +0.08 |
L ±0.25 |
Spess. |
Distanza |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 15CKFH306 | 2.3 | M3x0.5 | 0.51 | 2.05 | 4.58 | 3 | 6 | 1.53 | 3.8 | Scheda |
| 15CKFH308 | 2.3 | M3x0.5 | 0.51 | 2.05 | 4.58 | 3 | 8 | 1.53 | 3.8 | Scheda |
| 15CKFH310 | 2.3 | M3x0.5 | 0.51 | 2.05 | 4.58 | 3 | 10 | 1.53 | 3.8 | Scheda |
| 15CKFH312 | 2.3 | M3x0.5 | 0.51 | 2.05 | 4.58 | 3 | 12 | 1.53 | 3.8 | Scheda |
| 15CKFH315 | 2.3 | M3x0.5 | 0.51 | 2.05 | 4.58 | 3 | 15 | 1.53 | 3.8 | Scheda |
| 15CKFH318 | 2.3 | M3x0.5 | 0.51 | 2.05 | 4.58 | 3 | 18 | 1.53 | 3.8 | Scheda |
| 15CKFH320 | 2.3 | M3x0.5 | 0.51 | 2.05 | 4.58 | 3 | 20 | 1.53 | 3.8 | Scheda |
| 15CKFH325 | 2.3 | M3x0.5 | 0.51 | 2.05 | 4.58 | 3 | 25 | 1.53 | 3.8 | Scheda |
| 15CKFH330 | 2.3 | M3x0.5 | 0.51 | 2.05 | 4.58 | 3 | 30 | 1.53 | 3.8 | Scheda |
| 15CKFH406 | 2.3 | M4x0.7 | 0.51 | 2.05 | 6.14 | 4.2 | 6 | 1.53 | 5.1 | Scheda |
| 15CKFH408 | 2.3 | M4x0.7 | 0.51 | 2.05 | 6.14 | 4.2 | 8 | 1.53 | 5.1 | Scheda |
| 15CKFH410 | 2.3 | M4x0.7 | 0.51 | 2.05 | 6.14 | 4.2 | 10 | 1.53 | 5.1 | Scheda |
| 15CKFH412 | 2.3 | M4x0.7 | 0.51 | 2.05 | 6.14 | 4.2 | 12 | 1.53 | 5.1 | Scheda |
| 15CKFH415 | 2.3 | M4x0.7 | 0.51 | 2.05 | 6.14 | 4.2 | 15 | 1.53 | 5.1 | Scheda |
| 15CKFH418 | 2.3 | M4x0.7 | 0.51 | 2.05 | 6.14 | 4.2 | 18 | 1.53 | 5.1 | Scheda |
| 15CKFH420 | 2.3 | M4x0.7 | 0.51 | 2.05 | 6.14 | 4.2 | 20 | 1.53 | 5.1 | Scheda |
| 15CKFH425 | 2.3 | M4x0.7 | 0.51 | 2.05 | 6.14 | 4.2 | 25 | 1.53 | 5.1 | Scheda |
| 15CKFH430 | 2.3 | M4x0.7 | 0.51 | 2.05 | 6.14 | 4.2 | 30 | 1.53 | 5.1 | Scheda |
| 15CKFH506 | 2.3 | M5x0.8 | 0.51 | 2.05 | 6.6 | 5 | 6 | 1.53 | 5.3 | Scheda |
| 15CKFH508 | 2.3 | M5x0.8 | 0.51 | 2.05 | 6.6 | 5 | 8 | 1.53 | 5.3 | Scheda |
| 15CKFH510 | 2.3 | M5x0.8 | 0.51 | 2.05 | 6.6 | 5 | 10 | 1.53 | 5.3 | Scheda |
| 15CKFH512 | 2.3 | M5x0.8 | 0.51 | 2.05 | 6.6 | 5 | 12 | 1.53 | 5.3 | Scheda |
| 15CKFH515 | 2.3 | M5x0.8 | 0.51 | 2.05 | 6.6 | 5 | 15 | 1.53 | 5.3 | Scheda |
| 15CKFH518 | 2.3 | M5x0.8 | 0.51 | 2.05 | 6.6 | 5 | 18 | 1.53 | 5.3 | Scheda |
| 15CKFH520 | 2.3 | M5x0.8 | 0.51 | 2.05 | 6.6 | 5 | 20 | 1.53 | 5.3 | Scheda |
| 15CKFH525 | 2.3 | M5x0.8 | 0.51 | 2.05 | 6.6 | 5 | 25 | 1.53 | 5.3 | Scheda |
| 15CKFH530 | 2.3 | M5x0.8 | 0.51 | 2.05 | 6.6 | 5 | 30 | 1.53 | 5.3 | Scheda |
