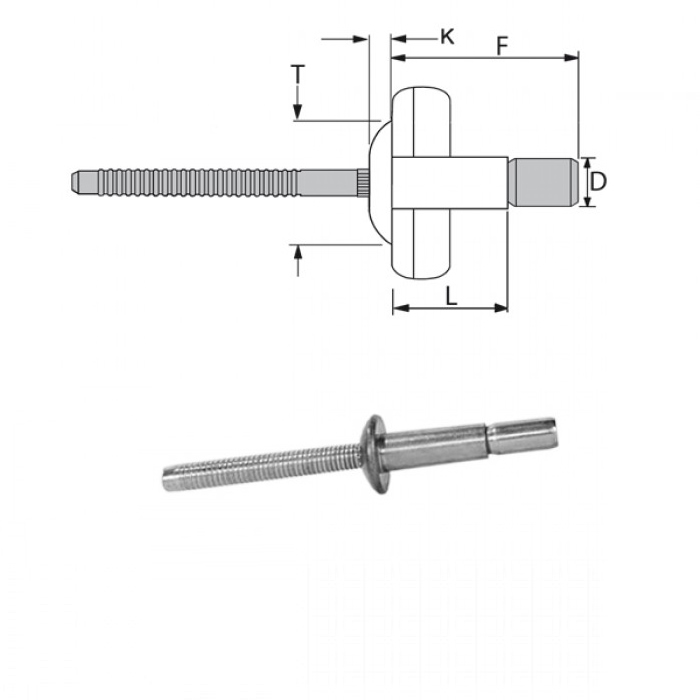

Structural blind rivets stainless steel 304 / stainless steel 304 - Dome head

Code



D

+0,08/-0,15

L

+1/-0,2

T

max

K

max

F

max 		Dia hole Thickness   Strength   Shear strenght   Download the data sheet of the product of your interest
01MFX4810TTIX 4,8 10 10,2 2,5 21,4 4,9 - 5,2 1,6 - 6,4 4400 N 5780 N Data sheet
01MFX4814TTIX 4,8 14 10,2 2,5 25,5 4,9 - 5,2 1,6 - 11,1 4400 N 5780 N Data sheet
01MFX6414TTIX 6,4 14 13,5 3,2 28,4 6,6 - 7 2 - 9,5 8220 N 10670 N Data sheet
01MFX6420TTIX 6,4 20 13,5 3,2 36,4 6,6 - 7 2 - 15,5 8220 N 10670 N Data sheet
01MFX7821TTIX 7,8 21 16 3,5 39 8 - 8,3 5 - 15 10790 N 15900 N Data sheet
Structural blind rivets stainless steel 304 / stainless steel 304 - Dome head

Ask for a quotation
