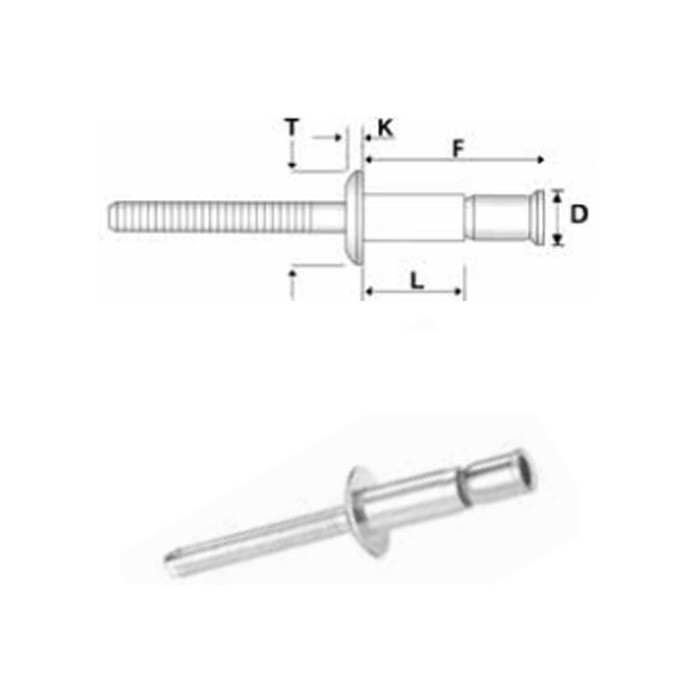

Structural blind rivets stainless steel 304 / stainless steel 304 - Dome head

High resistance to vibrations and good seal / To be used with special nose piece

Code



D

+0,2/-0,15

L

+1/-0,2

T

max

K

max

F

max 		Dia hole Thickness   Strength   Shear strenght   Download the data sheet of the product of your interest
01MFX4810TTIXM 4,8 10 10,2 2,5 21,4 4,9 - 5,2 1,6 - 6,4 5100 N 6400 N Data sheet
01MFX4814TTIXM 4,8 14 10,2 2,5 26,2 4,9 - 5,2 1,6 - 11,1 5100 N 6400 N Data sheet
01MFX6414TTIXM 6,4 14 13,5 3,2 30 6,6 - 7 2 - 9,5 10400 N 11700 N Data sheet
01MFX6420TTIXM 6,4 20 13,5 3,2 36,4 6,6 - 7 2 - 15,5 10400 N 11700 N Data sheet
Structural blind rivets stainless steel 304 / stainless steel 304 - Dome head

Ask for a quotation
