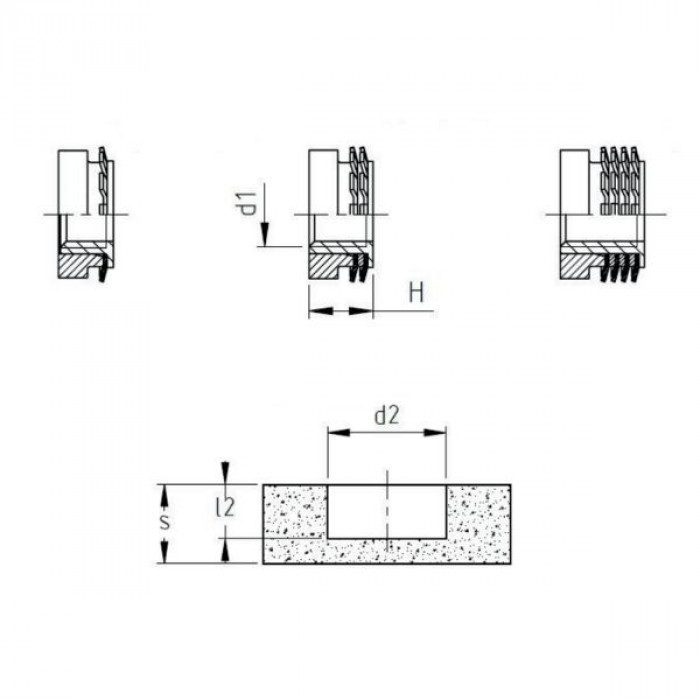

Self-anchoring threaded insert without flange - Inches

Code



d1



S
Minimum panel
hicknesses



H



d2

+0,2 / -0,2

l2

+1,0 / -0,0

N°Crown



Average pull-out
strength*

  		Download the data sheet of the product of your interest
83IXKB1SU1/4-20-5 1/4-20UNC 8 5 12 5,5 1 1,1 kN Data sheet
83IXKB1SU10-24-5 10-24UNC 8 5 12 5,5 1 1,1 kN Data sheet
83IXKB2SU1/4-20-6 1/4-20UNC 8,5 6 12 6,5 2 2,1 kN Data sheet
83IXKB2SU10-24-6 10-24UNC 8,5 6 12 6,5 2 2,1 kN Data sheet
83IXKB4SU1/4-20-8.5 1/4-20UNC 11 8,5 12 9 4 3,4 kN Data sheet
83IXKB4SU10-24-8.5 10-24UNC 11 8,5 12 9 4 3,4 kN Data sheet
83IXKB4SU1/4-20-15 1/4-20UNC 17,5 15 12 15,5 4 4,5 kN Data sheet
83IXKB4SU10-24-15 10-24UNC 17,5 15 12 15,5 4 4,5 kN Data sheet
Notes:

*Results from internal tests under optimal conditions. Not to be understood as reference values.

Self-anchoring threaded insert without flange - Inches
