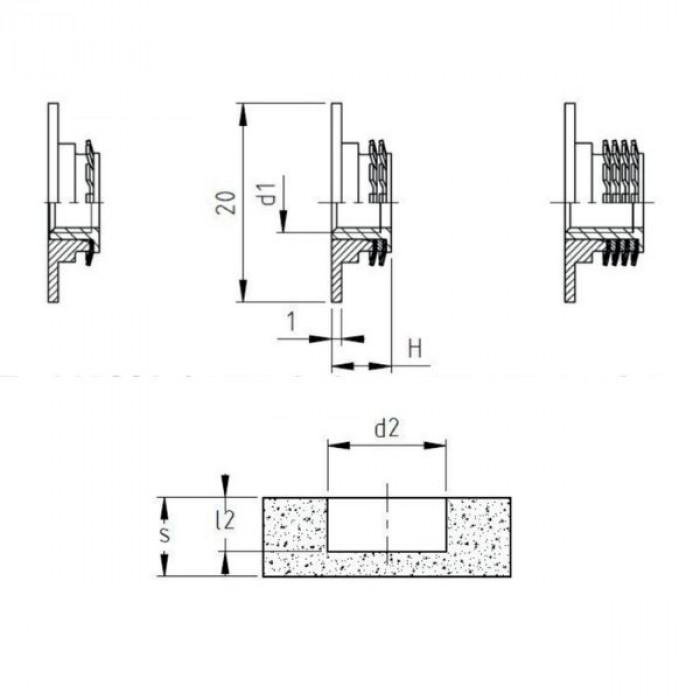

Self-anchoring threaded insert with flange metrical
Code |
d1 |
S |
H |
d2 +0,2 / -0,2 |
l2 +1,0 / -0,0 |
N°Crown |
Average pull-out |
|
|---|---|---|---|---|---|---|---|---|
| 83IXKB1TM04-5 | M4 | 7 | 5 | 12 | 4,5 | 1 | 0,7 kN | Data sheet |
| 83IXKB1TM05-5 | M5 | 7 | 5 | 12 | 4,5 | 1 | 0,7 kN | Data sheet |
| 83IXKB1TM06-5 | M6 | 7 | 5 | 12 | 4,5 | 1 | 0,7 kN | Data sheet |
| 83IXKB2TM04-6 | M4 | 7,5 | 6 | 12 | 5,5 | 2 | 1,9 kN | Data sheet |
| 83IXKB2TM05-6 | M5 | 7,5 | 6 | 12 | 5,5 | 2 | 1,9 kN | Data sheet |
| 83IXKB2TM06-6 | M6 | 7,5 | 6 | 12 | 5,5 | 2 | 1,9 kN | Data sheet |
| 83IXKB4TM04-8.5 | M4 | 10 | 8 | 12 | 8 | 4 | 3 kN | Data sheet |
| 83IXKB4TM05-8.5 | M5 | 10 | 8 | 12 | 8 | 4 | 3 kN | Data sheet |
| 83IXKB4TM06-8.5 | M6 | 10 | 8 | 12 | 8 | 4 | 3 kN | Data sheet |
Notes:
*Results from internal tests under optimal conditions. Not to be understood as reference values.
