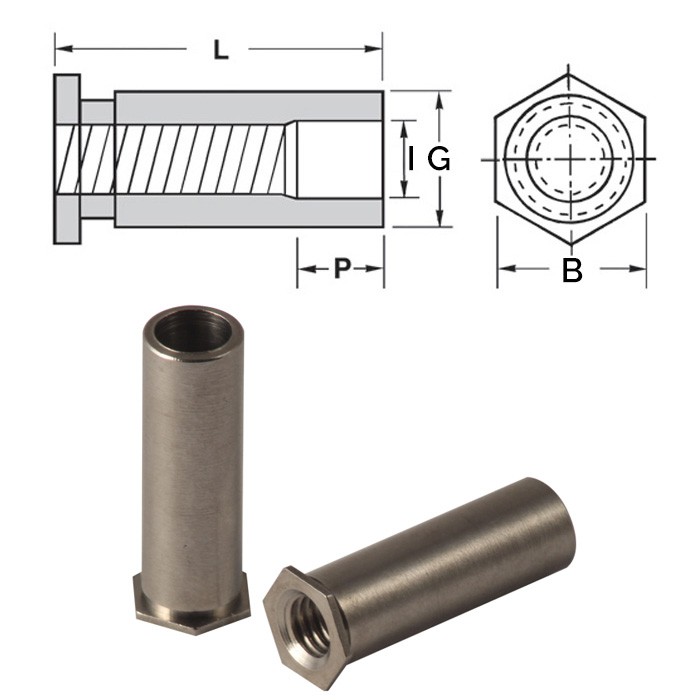

Self-clinching standoffs for sheet metal
sheet hardness max 70 HRB
Code |
Thread |
B |
Hole Size +0.08 |
G -0.13 |
P |
L |
I +/-0.13 |
Min. Sheet |
Minimum |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 15CFSOSM2.5-03 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 0 | 3 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-04 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 0 | 4 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-05 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 0 | 5 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-06 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 0 | 6 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-08 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 0 | 8 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-10 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 4 | 10 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-12 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 4 | 12 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-14 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 4 | 14 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-16 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 8 | 16 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-18 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 8 | 18 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-20 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 8 | 20 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-03 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 0 | 3 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-04 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 0 | 4 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-05 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 0 | 5 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-06 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 0 | 6 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-08 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 0 | 8 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-10 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 4 | 10 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-12 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 4 | 12 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-14 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 4 | 14 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-16 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 8 | 16 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-18 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 8 | 18 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-20 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 8 | 20 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-22 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 11 | 22 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-25 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 11 | 25 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOS35M3-03 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 0 | 3 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-04 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 0 | 4 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-05 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 0 | 5 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-06 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 0 | 6 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-08 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 0 | 8 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-10 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 4 | 10 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-12 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 4 | 12 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-14 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 4 | 14 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-16 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 8 | 16 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-18 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 8 | 18 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-20 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 8 | 20 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-22 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 11 | 22 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-25 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 11 | 25 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOSM4-03 | M4x0.7 | 7.9 | 7.2 | 7.11 | 0 | 3 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-04 | M4x0.7 | 7.9 | 7.2 | 7.11 | 0 | 4 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-05 | M4x0.7 | 7.9 | 7.2 | 7.11 | 0 | 5 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-06 | M4x0.7 | 7.9 | 7.2 | 7.11 | 0 | 6 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-08 | M4x0.7 | 7.9 | 7.2 | 7.11 | 0 | 8 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-10 | M4x0.7 | 7.9 | 7.2 | 7.11 | 4 | 10 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-12 | M4x0.7 | 7.9 | 7.2 | 7.11 | 4 | 12 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-14 | M4x0.7 | 7.9 | 7.2 | 7.11 | 4 | 14 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-16 | M4x0.7 | 7.9 | 7.2 | 7.11 | 8 | 16 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-18 | M4x0.7 | 7.9 | 7.2 | 7.11 | 8 | 18 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-20 | M4x0.7 | 7.9 | 7.2 | 7.11 | 8 | 20 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-22 | M4x0.7 | 7.9 | 7.2 | 7.11 | 11 | 22 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-25 | M4x0.7 | 7.9 | 7.2 | 7.11 | 11 | 25 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-03 | M5x0.8 | 7.9 | 7.2 | 7.11 | 0 | 3 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-04 | M5x0.8 | 7.9 | 7.2 | 7.11 | 0 | 4 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-05 | M5x0.8 | 7.9 | 7.2 | 7.11 | 0 | 5 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-06 | M5x0.8 | 7.9 | 7.2 | 7.11 | 0 | 6 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-08 | M5x0.8 | 7.9 | 7.2 | 7.11 | 0 | 8 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-10 | M5x0.8 | 7.9 | 7.2 | 7.11 | 4 | 10 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-12 | M5x0.8 | 7.9 | 7.2 | 7.11 | 4 | 12 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-14 | M5x0.8 | 7.9 | 7.2 | 7.11 | 4 | 14 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-16 | M5x0.8 | 7.9 | 7.2 | 7.11 | 8 | 16 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-18 | M5x0.8 | 7.9 | 7.2 | 7.11 | 8 | 18 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-20 | M5x0.8 | 7.9 | 7.2 | 7.11 | 8 | 20 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-22 | M5x0.8 | 7.9 | 7.2 | 7.11 | 11 | 22 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-25 | M5x0.8 | 7.9 | 7.2 | 7.11 | 11 | 25 | 5.2 | 1.3 | 8 | Data sheet |
