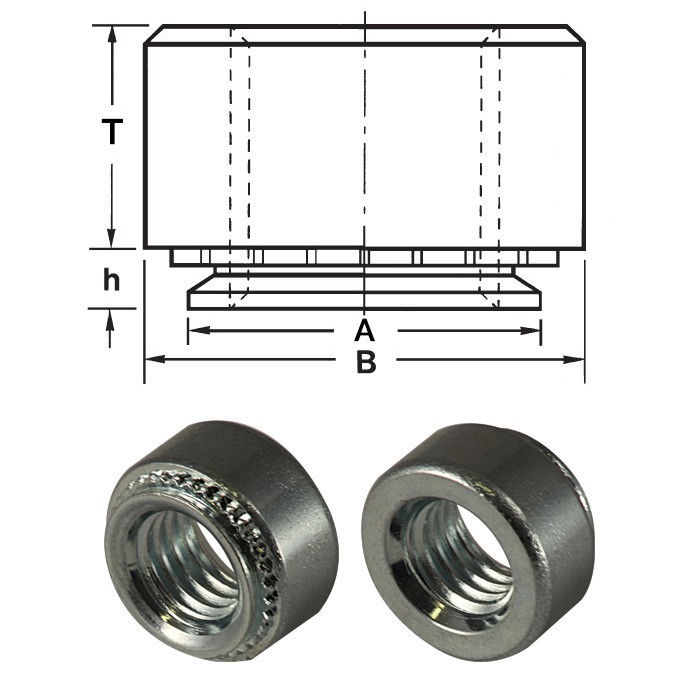

Self-clinching nuts for sheet metal 400 series
sheet hardness max 90 HRB
Code |
Thread |
T +/- 0.25 |
A Max |
B +/- 0.25 |
Hole Size +0.08 |
h Max |
Min. Sheet |
Min.Dist. |
|
|---|---|---|---|---|---|---|---|---|---|
| 15CSM2-0A4 | M2x0.4 | 1.5 | 4.22 | 6.3 | 4.25 | 0.76 | 0.8 | 4.8 | Data sheet |
| 15CSM2-1A4 | M2x0.4 | 1.5 | 4.22 | 6.3 | 4.25 | 0.97 | 1 | 4.8 | Data sheet |
| 15CSM2-2A4 | M2x0.4 | 1.5 | 4.22 | 6.3 | 4.25 | 1.37 | 1.4 | 4.8 | Data sheet |
| 15CSM2-3A4 | M2x0.4 | 1.5 | 4.22 | 6.3 | 4.25 | 2.21 | 2.3 | 4.8 | Data sheet |
| 15CSM2.5-0A4 | M2.5x0.45 | 1.5 | 4.22 | 6.3 | 4.25 | 0.76 | 0.8 | 4.8 | Data sheet |
| 15CSM2.5-1A4 | M2.5x0.45 | 1.5 | 4.22 | 6.3 | 4.25 | 0.97 | 1 | 4.8 | Data sheet |
| 15CSM2.5-2A4 | M2.5x0.45 | 1.5 | 4.22 | 6.3 | 4.25 | 1.37 | 1.4 | 4.8 | Data sheet |
| 15CSM2.5-3A4 | M2.5x0.45 | 1.5 | 4.22 | 6.3 | 4.25 | 2.21 | 2.3 | 4.8 | Data sheet |
| 15CSM3-0A4 | M3x0.5 | 1.5 | 4.22 | 6.3 | 4.25 | 0.76 | 0.8 | 4.8 | Data sheet |
| 15CSM3-1A4 | M3x0.5 | 1.5 | 4.22 | 6.3 | 4.25 | 0.97 | 1 | 4.8 | Data sheet |
| 15CSM3-2A4 | M3x0.5 | 1.5 | 4.22 | 6.3 | 4.25 | 1.37 | 1.4 | 4.8 | Data sheet |
| 15CSM4-0A4 | M4x0.7 | 2.0 | 5.38 | 7.9 | 5.4 | 0.76 | 0.8 | 6.9 | Data sheet |
| 15CSM4-1A4 | M4x0.7 | 2.0 | 5.38 | 7.9 | 5.4 | 0.97 | 1.0 | 6.9 | Data sheet |
| 15CSM4-2A4 | M4x0.7 | 2.0 | 5.38 | 7.9 | 5.4 | 1.37 | 1.4 | 6.9 | Data sheet |
| 15CSM5-0A4 | M5x0.8 | 2.0 | 6.38 | 8.7 | 6.4 | 0.76 | 0.8 | 7.1 | Data sheet |
| 15CSM5-1A4 | M5x0.8 | 2.0 | 6.38 | 8.7 | 6.4 | 0.97 | 1.0 | 7.1 | Data sheet |
| 15CSM5-2A4 | M5x0.8 | 2.0 | 6.38 | 8.7 | 6.4 | 1.37 | 1.4 | 7.1 | Data sheet |
| 15CSM6-00A4 | M6x1 | 4.08 | 8.72 | 11.05 | 8.75 | 0,89 | 0,92 | 8.6 | Data sheet |
| 15CSM6-0A4 | M6x1 | 4.08 | 8.72 | 11.05 | 8.75 | 1.15 | 1.2 | 8.6 | Data sheet |
| 15CSM6-1A4 | M6x1 | 4.08 | 8.72 | 11.05 | 8.75 | 1.37 | 1.4 | 8.6 | Data sheet |
| 15CSM6-2A4 | M6x1 | 4.08 | 8.72 | 11.05 | 8.75 | 2.21 | 2.3 | 8.6 | Data sheet |
| 15CSM6-3A4 | M6x1 | 4.08 | 8.72 | 11.05 | 8.75 | 3.05 | 3.2 | 8.6 | Data sheet |
| 15CSM8-1A4 | M8x1.25 | 5.47 | 10.44 | 12.65 | 10.5 | 1.37 | 1.4 | 9.7 | Data sheet |
| 15CSM8-2A4 | M8x1.25 | 5.47 | 10.44 | 12.65 | 10.5 | 2.21 | 2.3 | 9.7 | Data sheet |
| 15CSM8-3A4 | M8x1.25 | 5.47 | 10.44 | 12.65 | 10.5 | 3.05 | 3.2 | 9.7 | Data sheet |
| 15CSM10-1A4 | M10x1.5 | 7.5 | 13.9 | 17.35 | 14 | 2.21 | 2.3 | 11 | Data sheet |
| 15CSM10-2A4 | M10x1.5 | 7.5 | 13.9 | 17.35 | 14 | 3.05 | 3.1 | 11 | Data sheet |
| 15CSM10-3A4 | M10x1.5 | 7.5 | 13.9 | 17.35 | 14 | 5.97 | 6.1 | 11 | Data sheet |
