Self-clinching nuts for sheet metal
sheet hardness max 50 HRB
Code |
Thread |

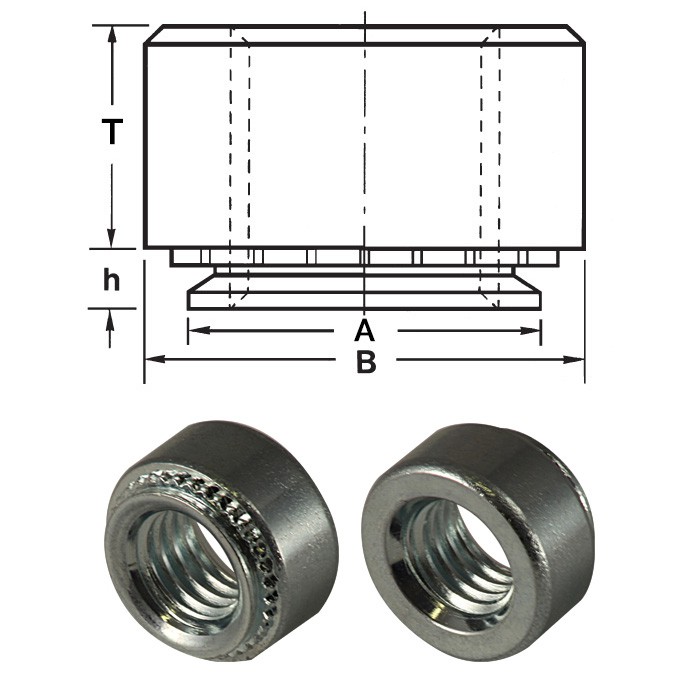

T +/- 0.25 |
A Max |
B +/- 0.25 |
Hole Size +0.08 |
h Max |
Min. Sheet |
Min.Dist. |
|
|---|---|---|---|---|---|---|---|---|---|
| 15CAM2-1 | M2x0.4 | 1.5 | 4.22 | 6.3 | 4.25 | 0.97 | 1 | 4.8 | Data sheet |
| 15CAM2-2 | M2x0.4 | 1.5 | 4.22 | 6.3 | 4.25 | 1.37 | 1.4 | 4.8 | Data sheet |
| 15CAM3-1 | M3x0.5 | 2 | 4.73 | 6.3 | 4.75 | 0.97 | 1 | 5.6 | Data sheet |
| 15CAM3-2 | M3x0.5 | 2 | 4.73 | 6.3 | 4.75 | 1.37 | 1.4 | 5.6 | Data sheet |
| 15CAM4-1 | M4x0.7 | 3 | 6.37 | 7.9 | 6 | 0.97 | 1.0 | 7.1 | Data sheet |
| 15CAM4-2 | M4x0.7 | 3 | 6.37 | 7.9 | 6 | 1.37 | 1.4 | 7.1 | Data sheet |
| 15CAM5-1 | M5x0.8 | 3.8 | 7.47 | 9.5 | 7.5 | 0.97 | 1.0 | 7.9 | Data sheet |
| 15CAM5-2 | M5x0.8 | 3.8 | 7.47 | 9.5 | 7.5 | 1.37 | 1.4 | 7.9 | Data sheet |
| 15CAM6-1 | M6x1 | 4.08 | 8.72 | 11.05 | 8.75 | 1.37 | 1.4 | 8.6 | Data sheet |
| 15CAM6-2 | M6x1 | 4.08 | 8.72 | 11.05 | 8.75 | 2.21 | 2.3 | 8.6 | Data sheet |
