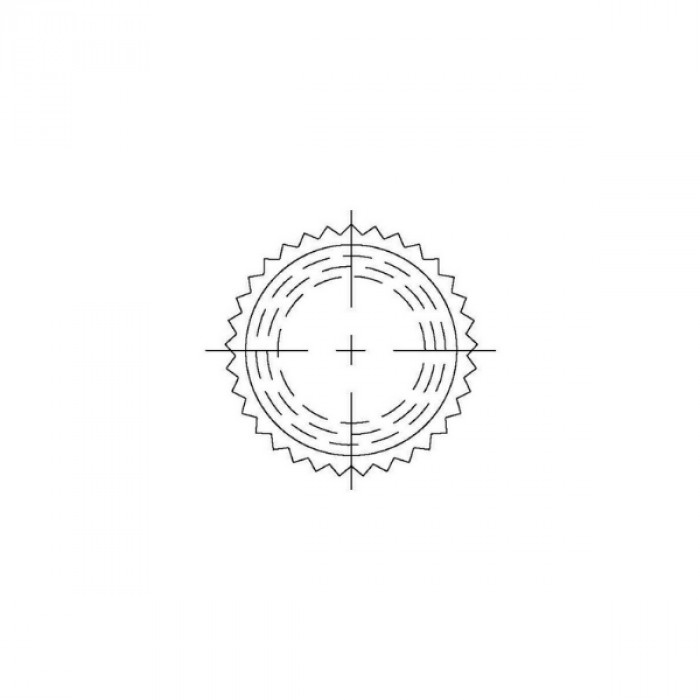

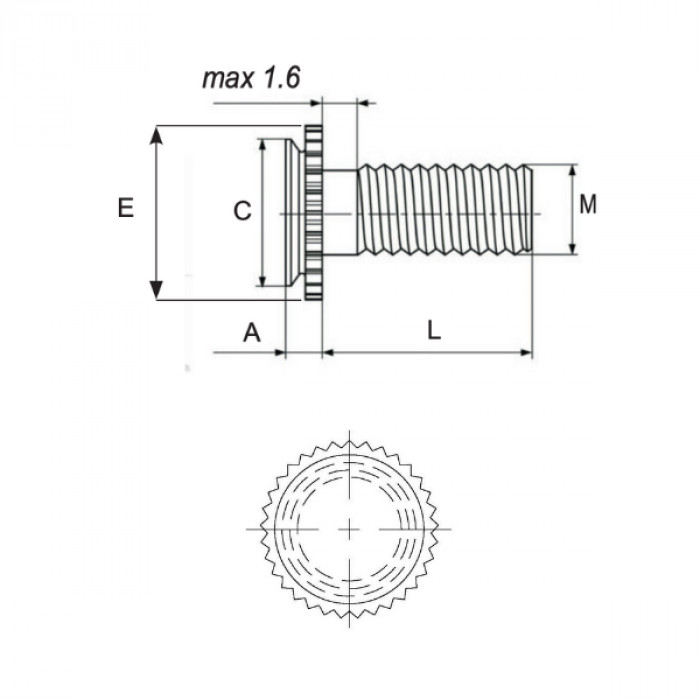

Self-clinching concealed head studs
sheet hardness max 50 HRB
Code |
Min. sheet |
Thread |
Thread size |
A Max |
C Max |
E Max |
Hole Size +0.08 |
L ±0.4 |
Min. Sheet |
Minimum |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15CFHCAM3-06 | 2.31 | M3x0.5 | M3x0.5 | 1.8 | 4.35 | 5.21 | 4.37 | 6 | 2.4 | 4 | Data sheet |
| 15CFHCAM3-08 | 2.31 | M3x0.5 | M3x0.5 | 1.8 | 4.35 | 5.21 | 4.37 | 8 | 2.4 | 4 | Data sheet |
| 15CFHCAM3-10 | 2.31 | M3x0.5 | M3x0.5 | 1.8 | 4.35 | 5.21 | 4.37 | 10 | 2.4 | 4 | Data sheet |
| 15CFHCAM3-12 | 2.31 | M3x0.5 | M3x0.5 | 1.8 | 4.35 | 5.21 | 4.37 | 12 | 2.4 | 4 | Data sheet |
| 15CFHCAM3-16 | 2.31 | M3x0.5 | M3x0.5 | 1.8 | 4.35 | 5.21 | 4.37 | 16 | 2.4 | 4 | Data sheet |
| 15CFHCAM3-20 | 2.31 | M3x0.5 | M3x0.5 | 1.8 | 4.35 | 5.21 | 4.37 | 20 | 2.4 | 4 | Data sheet |
| 15CFHCAM4-06 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 6 | 2.4 | 5.6 | Data sheet |
| 15CFHCAM4-08 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 8 | 2.4 | 5.6 | Data sheet |
| 15CFHCAM4-10 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 10 | 2.4 | 5.6 | Data sheet |
| 15CFHCAM4-12 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 12 | 2.4 | 5.6 | Data sheet |
| 15CFHCAM4-16 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 16 | 2.4 | 5.6 | Data sheet |
| 15CFHCAM4-20 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 20 | 2.4 | 5.6 | Data sheet |
| 15CFHCAM4-25 | 2.31 | M4x0.7 | M4x0.7 | 1.8 | 7.35 | 8.33 | 7.37 | 25 | 2.4 | 5.6 | Data sheet |
| 15CFHCAM5-10 | 2.31 | M5x0.8 | M5x0.8 | 1.8 | 7.9 | 9.29 | 8.33 | 10 | 2.4 | 6.4 | Data sheet |
| 15CFHCAM5-12 | 2.31 | M5x0.8 | M5x0.8 | 1.8 | 7.9 | 9.29 | 8.33 | 12 | 2.4 | 6.4 | Data sheet |
| 15CFHCAM5-16 | 2.31 | M5x0.8 | M5x0.8 | 1.8 | 7.9 | 9.29 | 8.33 | 16 | 2.4 | 6.4 | Data sheet |
| 15CFHCAM5-20 | 2.31 | M5x0.8 | M5x0.8 | 1.8 | 7.9 | 9.29 | 8.33 | 20 | 2.4 | 6.4 | Data sheet |
| 15CFHCAM5-25 | 2.31 | M5x0.8 | M5x0.8 | 1.8 | 7.9 | 9.29 | 8.33 | 25 | 2.4 | 6.4 | Data sheet |
