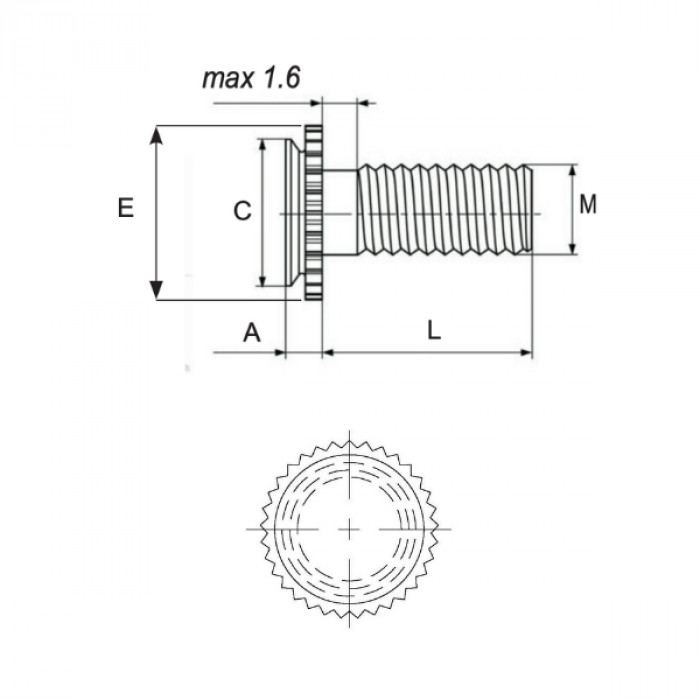

Self-clinching concealed head studs
sheet hardness max 50 HRB
Code |
Min. sheet |
Thread |
A Max |
C Max |
E Max |
Hole Size +0.08 |
L ±0.4 |
Min. Sheet |
Minimum |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 15CHCAM3-06 | 1.1 | M3x0.5 | 1.04 | 4.35 | 5.21 | 4.37 | 6 | 1.6 | 4 | Data sheet |
| 15CHCAM3-08 | 1.1 | M3x0.5 | 1.04 | 4.35 | 5.21 | 4.37 | 8 | 1.6 | 4 | Data sheet |
| 15CHCAM3-10 | 1.1 | M3x0.5 | 1.04 | 4.35 | 5.21 | 4.37 | 10 | 1.6 | 4 | Data sheet |
| 15CHCAM3-12 | 1.1 | M3x0.5 | 1.04 | 4.35 | 5.21 | 4.37 | 12 | 1.6 | 4 | Data sheet |
| 15CHCAM3-16 | 1.1 | M3x0.5 | 1.04 | 4.35 | 5.21 | 4.37 | 16 | 1.6 | 4 | Data sheet |
| 15CHCAM3-20 | 1.1 | M3x0.5 | 1.04 | 4.35 | 5.21 | 4.37 | 20 | 1.6 | 4 | Data sheet |
| 15CHCAM4-06 | 1.1 | M4x0.7 | 1.04 | 7.35 | 8.33 | 7.37 | 6 | 1.6 | 5.6 | Data sheet |
| 15CHCAM4-08 | 1.1 | M4x0.7 | 1.04 | 7.35 | 8.33 | 7.37 | 8 | 1.6 | 5.6 | Data sheet |
| 15CHCAM4-10 | 1.1 | M4x0.7 | 1.04 | 7.35 | 8.33 | 7.37 | 10 | 1.6 | 5.6 | Data sheet |
| 15CHCAM4-12 | 1.1 | M4x0.7 | 1.04 | 7.35 | 8.33 | 7.37 | 12 | 1.6 | 5.6 | Data sheet |
| 15CHCAM4-16 | 1.1 | M4x0.7 | 1.04 | 7.35 | 8.33 | 7.37 | 16 | 1.6 | 5.6 | Data sheet |
| 15CHCAM4-20 | 1.1 | M4x0.7 | 1.04 | 7.35 | 8.33 | 7.37 | 20 | 1.6 | 5.6 | Data sheet |
| 15CHCAM4-25 | 1.1 | M4x0.7 | 1.04 | 7.35 | 8.33 | 7.37 | 25 | 1.6 | 5.6 | Data sheet |
| 15CHCAM5-10 | 1.1 | M5x0.8 | 1.04 | 7.9 | 9.29 | 8.33 | 10 | 1.6 | 6.4 | Data sheet |
| 15CHCAM5-12 | 1.1 | M5x0.8 | 1.04 | 7.9 | 9.29 | 8.33 | 12 | 1.6 | 6.4 | Data sheet |
| 15CHCAM5-16 | 1.1 | M5x0.8 | 1.04 | 7.9 | 9.29 | 8.33 | 16 | 1.6 | 6.4 | Data sheet |
| 15CHCAM5-20 | 1.1 | M5x0.8 | 1.04 | 7.9 | 9.29 | 8.33 | 20 | 1.6 | 6.4 | Data sheet |
| 15CHCAM5-25 | 1.1 | M5x0.8 | 1.04 | 7.9 | 9.29 | 8.33 | 25 | 1.6 | 6.4 | Data sheet |
