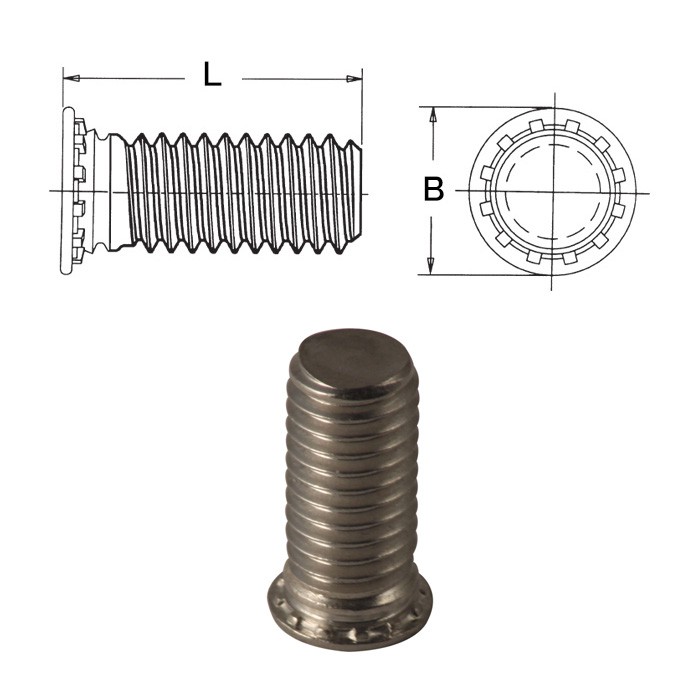

Self-clinching studs for sheet metal
sheet hardness max 50 HRB
Code |
Thread |
B +/-0.4 |
Hole Size +0.08 |
L |
Min. Sheet |
Min.Dist. |
|
|---|---|---|---|---|---|---|---|
| 15CHAM2.5-05 | M2.5 x 0.45 | 4.1 | 2.5 | 5 | 1 | 5.4 | Data sheet |
| 15CHAM2.5-06 | M2.5 x 0.45 | 4.1 | 2.5 | 6 | 1 | 5.4 | Data sheet |
| 15CHAM2.5-08 | M2.5 x 0.45 | 4.1 | 2.5 | 8 | 1 | 5.4 | Data sheet |
| 15CHAM2.5-10 | M2.5 x 0.45 | 4.1 | 2.5 | 10 | 1 | 5.4 | Data sheet |
| 15CHAM2.5-12 | M2.5 x 0.45 | 4.1 | 2.5 | 12 | 1 | 5.4 | Data sheet |
| 15CHAM2.5-15 | M2.5 x 0.45 | 4.1 | 2.5 | 15 | 1 | 5.4 | Data sheet |
| 15CHAM2.5-16 | M2.5 x 0.45 | 4.1 | 2.5 | 16 | 1 | 5.4 | Data sheet |
| 15CHAM2.5-18 | M2.5 x 0.45 | 4.1 | 2.5 | 18 | 1 | 5.4 | Data sheet |
| 15CHAM2.5-20 | M2.5 x 0.45 | 4.1 | 2.5 | 20 | 1 | 5.4 | Data sheet |
| 15CHAM2.5-22 | M2.5 x 0.45 | 4.1 | 2.5 | 22 | 1 | 5.4 | Data sheet |
| 15CHAM2.5-25 | M2.5 x 0.45 | 4.1 | 2.5 | 25 | 1 | 5.4 | Data sheet |
| 15 CHAM3-06 | M3 x 0.5 | 4.6 | 3 | 6 | 1 | 5.6 | Data sheet |
| 15 CHAM3-08 | M3 x 0.5 | 4.6 | 3 | 8 | 1 | 5.6 | Data sheet |
| 15 CHAM3-10 | M3 x 0.5 | 4.6 | 3 | 10 | 1 | 5.6 | Data sheet |
| 15 CHAM3-12 | M3 x 0.5 | 4.6 | 3 | 12 | 1 | 5.6 | Data sheet |
| 15 CHAM3-14 | M3 x 0.5 | 4.6 | 3 | 14 | 1 | 5.6 | Data sheet |
| 15 CHAM3-15 | M3 x 0.5 | 4.6 | 3 | 15 | 1 | 5.6 | Data sheet |
| 15 CHAM3-16 | M3 x 0.5 | 4.6 | 3 | 16 | 1 | 5.6 | Data sheet |
| 15 CHAM3-18 | M3 x 0.5 | 4.6 | 3 | 18 | 1 | 5.6 | Data sheet |
| 15 CHAM3-20 | M3 x 0.5 | 4.6 | 3 | 20 | 1 | 5.6 | Data sheet |
| 15 CHAM3-22 | M3 x 0.5 | 4.6 | 3 | 22 | 1 | 5.6 | Data sheet |
| 15 CHAM3-25 | M3 x 0.5 | 4.6 | 3 | 25 | 1 | 5.6 | Data sheet |
| 15 CHAM4-04 | M4 x 0.7 | 5.9 | 4 | 4 | 1 | 7.2 | Data sheet |
| 15 CHAM4-06 | M4 x 0.7 | 5.9 | 4 | 6 | 1 | 7.2 | Data sheet |
| 15 CHAM4-08 | M4 x 0.7 | 5.9 | 4 | 8 | 1 | 7.2 | Data sheet |
| 15 CHAM4-10 | M4 x 0.7 | 5.9 | 4 | 10 | 1 | 7.2 | Data sheet |
| 15 CHAM4-12 | M4 x 0.7 | 5.9 | 4 | 12 | 1 | 7.2 | Data sheet |
| 15 CHAM4-14 | M4 x 0.7 | 5.9 | 4 | 14 | 1 | 7.2 | Data sheet |
| 15 CHAM4-15 | M4 x 0.7 | 5.9 | 4 | 15 | 1 | 7.2 | Data sheet |
| 15 CHAM4-16 | M4 x 0.7 | 5.9 | 4 | 16 | 1 | 7.2 | Data sheet |
| 15 CHAM4-18 | M4 x 0.7 | 5.9 | 4 | 18 | 1 | 7.2 | Data sheet |
| 15 CHAM4-20 | M4 x 0.7 | 5.9 | 4 | 20 | 1 | 7.2 | Data sheet |
| 15 CHAM4-22 | M4 x 0.7 | 5.9 | 4 | 22 | 1 | 7.2 | Data sheet |
| 15 CHAM4-25 | M4 x 0.7 | 5.9 | 4 | 25 | 1 | 7.2 | Data sheet |
| 15 CHAM4-28 | M4 x 0.7 | 5.9 | 4 | 28 | 1 | 7.2 | Data sheet |
| 15 CHAM4-30 | M4 x 0.7 | 5.9 | 4 | 30 | 1 | 7.2 | Data sheet |
| 15 CHAM4-35 | M4 x 0.7 | 5.9 | 4 | 35 | 1 | 7.2 | Data sheet |
| 15 CHAM5-04 | M5 x 0.8 | 6.5 | 5 | 4 | 1 | 7.2 | Data sheet |
| 15 CHAM5-06 | M5 x 0.8 | 6.5 | 5 | 6 | 1 | 7.2 | Data sheet |
| 15 CHAM5-08 | M5 x 0.8 | 6.5 | 5 | 8 | 1 | 7.2 | Data sheet |
| 15 CHAM5-10 | M5 x 0.8 | 6.5 | 5 | 10 | 1 | 7.2 | Data sheet |
| 15 CHAM5-12 | M5 x 0.8 | 6.5 | 5 | 12 | 1 | 7.2 | Data sheet |
| 15 CHAM5-14 | M5 x 0.8 | 6.5 | 5 | 14 | 1 | 7.2 | Data sheet |
| 15 CHAM5-15 | M5 x 0.8 | 6.5 | 5 | 15 | 1 | 7.2 | Data sheet |
| 15 CHAM5-16 | M5 x 0.8 | 6.5 | 5 | 16 | 1 | 7.2 | Data sheet |
| 15 CHAM5-18 | M5 x 0.8 | 6.5 | 5 | 18 | 1 | 7.2 | Data sheet |
| 15 CHAM5-20 | M5 x 0.8 | 6.5 | 5 | 20 | 1 | 7.2 | Data sheet |
| 15 CHAM5-22 | M5 x 0.8 | 6.5 | 5 | 22 | 1 | 7.2 | Data sheet |
| 15 CHAM5-25 | M5 x 0.8 | 6.5 | 5 | 25 | 1 | 7.2 | Data sheet |
| 15 CHAM5-28 | M5 x 0.8 | 6.5 | 5 | 28 | 1 | 7.2 | Data sheet |
| 15 CHAM5-30 | M5 x 0.8 | 6.5 | 5 | 30 | 1 | 7.2 | Data sheet |
| 15 CHAM5-35 | M5 x 0.8 | 6.5 | 5 | 35 | 1 | 7.2 | Data sheet |
| 15 CHAM5-38 | M5 x 0.8 | 6.5 | 5 | 38 | 1 | 7.2 | Data sheet |
| 15 CHAM6-08 | M6 x 1 | 8.2 | 6 | 8 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-10 | M6 x 1 | 8.2 | 6 | 10 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-12 | M6 x 1 | 8.2 | 6 | 12 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-14 | M6 x 1 | 8.2 | 6 | 14 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-15 | M6 x 1 | 8.2 | 6 | 15 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-16 | M6 x 1 | 8.2 | 6 | 16 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-18 | M6 x 1 | 8.2 | 6 | 18 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-20 | M6 x 1 | 8.2 | 6 | 20 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-22 | M6 x 1 | 8.2 | 6 | 22 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-25 | M6 x 1 | 8.2 | 6 | 25 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-28 | M6 x 1 | 8.2 | 6 | 28 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-30 | M6 x 1 | 8.2 | 6 | 30 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-35 | M6 x 1 | 8.2 | 6 | 35 | 1.6 | 7.9 | Data sheet |
| 15 CHAM6-38 | M6 x 1 | 8.2 | 6 | 38 | 1.6 | 7.9 | Data sheet |
| 15 CHAM8-08 | M8 x 1.25 | 9.6 | 8 | 8 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-10 | M8 x 1.25 | 9.6 | 8 | 10 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-12 | M8 x 1.25 | 9.6 | 8 | 12 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-14 | M8 x 1.25 | 9.6 | 8 | 14 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-15 | M8 x 1.25 | 9.6 | 8 | 15 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-16 | M8 x 1.25 | 9.6 | 8 | 16 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-18 | M8 x 1.25 | 9.6 | 8 | 18 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-20 | M8 x 1.25 | 9.6 | 8 | 20 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-22 | M8 x 1.25 | 9.6 | 8 | 22 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-25 | M8 x 1.25 | 9.6 | 8 | 25 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-28 | M8 x 1.25 | 9.6 | 8 | 28 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-30 | M8 x 1.25 | 9.6 | 8 | 30 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-35 | M8 x 1.25 | 9.6 | 8 | 35 | 2.4 | 9.6 | Data sheet |
| 15 CHAM8-38 | M8 x 1.25 | 9.6 | 8 | 38 | 2.4 | 9.6 | Data sheet |
| M8 x 1.25 | 12.6 | 10 | 38 | 2.4 | 18.3 | Data sheet |
