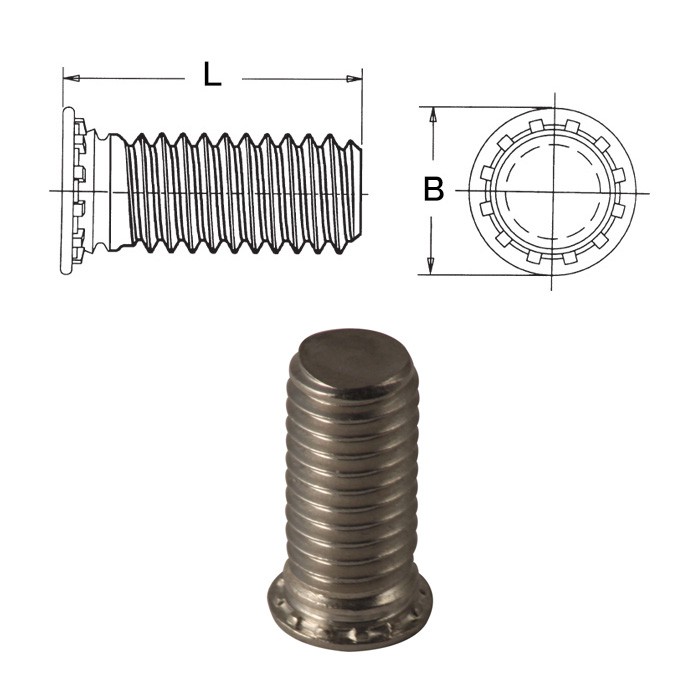

Self-clinching studs for sheet metal
sheet hardness max 70 HRB
Code |
Thread |
B +/-0.4 |
Hole Size +0.08 |
L |
Min. Sheet |
Min.Dist. |
|
|---|---|---|---|---|---|---|---|
| 15CHSM2.5-05 | M2.5 x 0.45 | 4.1 | 2.5 | 5 | 1.0 | 5.4 | Data sheet |
| 15CHSM2.5-06 | M2.5 x 0.45 | 4.1 | 2.5 | 6 | 1.0 | 5.4 | Data sheet |
| 15CHSM2.5-08 | M2.5 x 0.45 | 4.1 | 2.5 | 8 | 1.0 | 5.4 | Data sheet |
| 15CHSM2.5-10 | M2.5 x 0.45 | 4.1 | 2.5 | 10 | 1.0 | 5.4 | Data sheet |
| 15CHSM2.5-12 | M2.5 x 0.45 | 4.1 | 2.5 | 12 | 1.0 | 5.4 | Data sheet |
| 15CHSM2.5-15 | M2.5 x 0.45 | 4.1 | 2.5 | 15 | 1.0 | 5.4 | Data sheet |
| 15CHSM2.5-16 | M2.5 x 0.45 | 4.1 | 2.5 | 16 | 1.0 | 5.4 | Data sheet |
| 15CHSM2.5-18 | M2.5 x 0.45 | 4.1 | 2.5 | 18 | 1.0 | 5.4 | Data sheet |
| 15CHSM2.5-20 | M2.5 x 0.45 | 4.1 | 2.5 | 20 | 1.0 | 5.4 | Data sheet |
| 15CHSM2.5-22 | M2.5 x 0.45 | 4.1 | 2.5 | 22 | 1.0 | 5.4 | Data sheet |
| 15CHSM2.5-25 | M2.5 x 0.45 | 4.1 | 2.5 | 25 | 1.0 | 5.4 | Data sheet |
| 15CHSM3-06 | M3 x 0.5 | 4.6 | 3 | 6 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-08 | M3 x 0.5 | 4.6 | 3 | 8 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-10 | M3 x 0.5 | 4.6 | 3 | 10 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-12 | M3 x 0.5 | 4.6 | 3 | 12 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-14 | M3 x 0.5 | 4.6 | 3 | 14 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-15 | M3 x 0.5 | 4.6 | 3 | 15 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-16 | M3 x 0.5 | 4.6 | 3 | 16 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-18 | M3 x 0.5 | 4.6 | 3 | 18 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-20 | M3 x 0.5 | 4.6 | 3 | 20 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-22 | M3 x 0.5 | 4.6 | 3 | 22 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-25 | M3 x 0.5 | 4.6 | 3 | 25 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-28 | M3 x 0.5 | 4.6 | 3 | 28 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-30 | M3 x 0.5 | 4.6 | 3 | 30 | 1.0 | 5.6 | Data sheet |
| 15CHSM3-35 | M3 x 0.5 | 4.6 | 3 | 35 | 1.0 | 5.6 | Data sheet |
| 15CHSM4-06 | M4 x 0.7 | 5.9 | 4 | 6 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-08 | M4 x 0.7 | 5.9 | 4 | 8 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-10 | M4 x 0.7 | 5.9 | 4 | 10 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-12 | M4 x 0.7 | 5.9 | 4 | 12 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-14 | M4 x 0.7 | 5.9 | 4 | 14 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-15 | M4 x 0.7 | 5.9 | 4 | 15 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-16 | M4 x 0.7 | 5.9 | 4 | 16 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-18 | M4 x 0.7 | 5.9 | 4 | 18 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-20 | M4 x 0.7 | 5.9 | 4 | 20 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-22 | M4 x 0.7 | 5.9 | 4 | 22 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-25 | M4 x 0.7 | 5.9 | 4 | 25 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-28 | M4 x 0.7 | 5.9 | 4 | 28 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-30 | M4 x 0.7 | 5.9 | 4 | 30 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-35 | M4 x 0.7 | 5.9 | 4 | 35 | 1.0 | 7.2 | Data sheet |
| 15CHSM4-38 | M4 x 0.7 | 5.9 | 4 | 38 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-06 | M5 x 0.8 | 6.5 | 5 | 6 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-08 | M5 x 0.8 | 6.5 | 5 | 8 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-10 | M5 x 0.8 | 6.5 | 5 | 10 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-12 | M5 x 0.8 | 6.5 | 5 | 12 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-14 | M5 x 0.8 | 6.5 | 5 | 14 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-15 | M5 x 0.8 | 6.5 | 5 | 15 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-16 | M5 x 0.8 | 6.5 | 5 | 16 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-18 | M5 x 0.8 | 6.5 | 5 | 18 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-20 | M5 x 0.8 | 6.5 | 5 | 20 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-22 | M5 x 0.8 | 6.5 | 5 | 22 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-25 | M5 x 0.8 | 6.5 | 5 | 25 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-28 | M5 x 0.8 | 6.5 | 5 | 28 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-30 | M5 x 0.8 | 6.5 | 5 | 30 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-35 | M5 x 0.8 | 6.5 | 5 | 35 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-38 | M5 x 0.8 | 6.5 | 5 | 38 | 1.0 | 7.2 | Data sheet |
| 15CHSM5-40 | M5 x 0.8 | 6.5 | 5 | 40 | 1.0 | 7.2 | Data sheet |
| 15CHSM6-08 | M6 x 1 | 8.2 | 6 | 8 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-10 | M6 x 1 | 8.2 | 6 | 10 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-12 | M6 x 1 | 8.2 | 6 | 12 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-14 | M6 x 1 | 8.2 | 6 | 14 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-15 | M6 x 1 | 8.2 | 6 | 15 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-16 | M6 x 1 | 8.2 | 6 | 16 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-18 | M6 x 1 | 8.2 | 6 | 18 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-20 | M6 x 1 | 8.2 | 6 | 20 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-22 | M6 x 1 | 8.2 | 6 | 22 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-25 | M6 x 1 | 8.2 | 6 | 25 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-28 | M6 x 1 | 8.2 | 6 | 28 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-30 | M6 x 1 | 8.2 | 6 | 30 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-35 | M6 x 1 | 8.2 | 6 | 35 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-38 | M6 x 1 | 8.2 | 6 | 38 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-40 | M6 x 1 | 8.2 | 6 | 40 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-45 | M6 x 1 | 8.2 | 6 | 45 | 1.6 | 7.9 | Data sheet |
| 15CHSM6-50 | M6 x 1 | 8.2 | 6 | 50 | 1.6 | 7.9 | Data sheet |
| 15CHSM8-08 | M8 x 1.25 | 9.6 | 8 | 8 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-10 | M8 x 1.25 | 9.6 | 8 | 10 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-12 | M8 x 1.25 | 9.6 | 8 | 12 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-14 | M8 x 1.25 | 9.6 | 8 | 14 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-15 | M8 x 1.25 | 9.6 | 8 | 15 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-16 | M8 x 1.25 | 9.6 | 8 | 16 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-18 | M8 x 1.25 | 9.6 | 8 | 18 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-20 | M8 x 1.25 | 9.6 | 8 | 20 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-22 | M8 x 1.25 | 9.6 | 8 | 22 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-25 | M8 x 1.25 | 9.6 | 8 | 25 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-28 | M8 x 1.25 | 9.6 | 8 | 28 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-30 | M8 x 1.25 | 9.6 | 8 | 30 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-35 | M8 x 1.25 | 9.6 | 8 | 35 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-38 | M8 x 1.25 | 9.6 | 8 | 38 | 2.4 | 9.6 | Data sheet |
| 15CHSM8-40 | M8 x 1.25 | 9.6 | 8 | 40 | 2.4 | 9.6 | Data sheet |
| 15CHSM10-15 | M10 x 1.5 | 12.6 | 10 | 15 | 2.4 | 18.3 | Data sheet |
| 15CHSM10-20 | M10 x 1.5 | 12.6 | 10 | 20 | 2.4 | 18.3 | Data sheet |
| 15CHSM10-25 | M10 x 1.5 | 12.6 | 10 | 25 | 2.4 | 18.3 | Data sheet |
| 15CHSM10-30 | M10 x 1.5 | 12.6 | 10 | 30 | 2.4 | 18.3 | Data sheet |
| 15CHSM10-35 | M10 x 1.5 | 12.6 | 10 | 35 | 2.4 | 18.3 | Data sheet |
