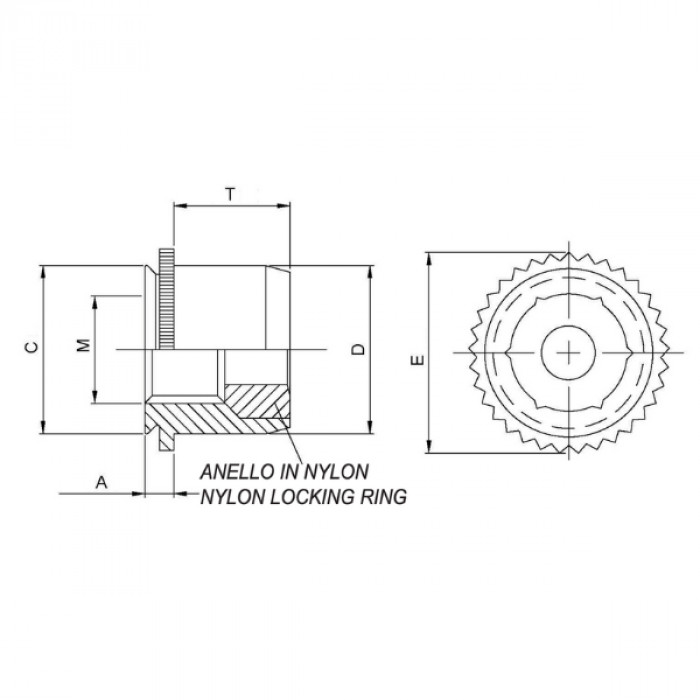

Nylon insert selflocking nuts for sheet metal

sheet hardness max 70 HRB

Code



Thread
size
x pitch



T

Max

D

Max

A

Max

C

Max

E

Max

Hole Size

+0.08

Min. Sheet
Thickness



Minimum
distance
center-edge

  		Download the data sheet of the product of your interest
15CFPLM3 M3 x 0.5 3.56 5.52 1.53 6.38 7.01 6 1.53-1.78 4.32 Data sheet
15CFPLM4 M4 x 0.7 4.2 7.01 1.53 7.48 8.54 7.5 1.53-1.78 5.59 Data sheet
15CFPLM5 M5 x 0.8 4.45 7.52 1.53 8.38 9.0 8 1.53-1.78 6.35 Data sheet
Nylon insert selflocking nuts for sheet metal
