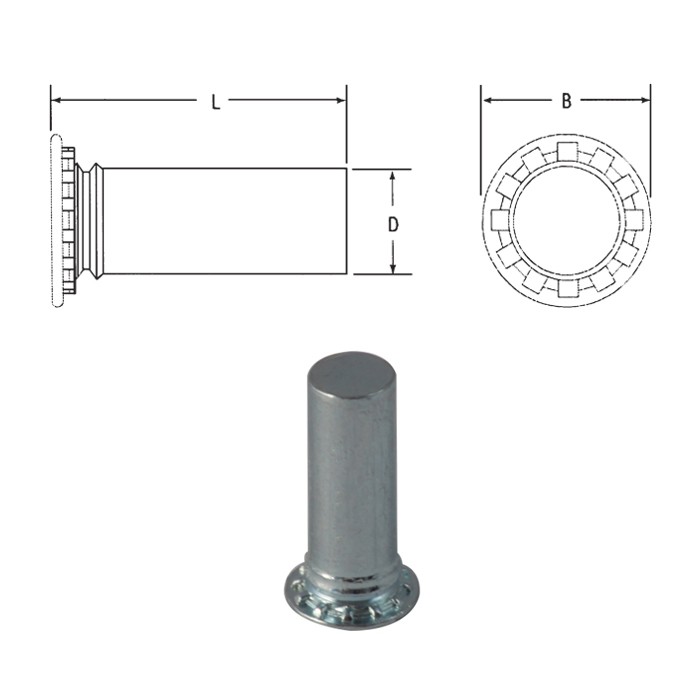

Self-clinching pins for sheet metal
sheet hardness max 80 HRB
Code |
D Ø |
B +/-0.4 |
Hole Size +0.08 |
L |
Min. Sheet |
Min.Dist. |
|
|---|---|---|---|---|---|---|---|
| 15CHD3-06 | 3 | 5.3 | 3.5 | 6 | 1 | 6.4 | Data sheet |
| 15CHD3-08 | 3 | 5.3 | 3.5 | 8 | 1 | 6.4 | Data sheet |
| 15CHD3-10 | 3 | 5.3 | 3.5 | 10 | 1 | 6.4 | Data sheet |
| 15CHD3-12 | 3 | 5.3 | 3.5 | 12 | 1 | 6.4 | Data sheet |
| 15CHD3-14 | 3 | 5.3 | 3.5 | 14 | 1 | 6.4 | Data sheet |
| 15CHD3-15 | 3 | 5.3 | 3.5 | 15 | 1 | 6.4 | Data sheet |
| 15CHD3-16 | 3 | 5.3 | 3.5 | 16 | 1 | 6.4 | Data sheet |
| 15CHD3-18 | 3 | 5.3 | 3.5 | 18 | 1 | 6.4 | Data sheet |
| 15CHD3-20 | 3 | 5.3 | 3.5 | 20 | 1 | 6.4 | Data sheet |
| 15CHD3-22 | 3 | 5.3 | 3.5 | 22 | 1 | 6.4 | Data sheet |
| 15CHD3-25 | 3 | 5.3 | 3.5 | 25 | 1 | 6.4 | Data sheet |
| 15CHD3-28 | 3 | 5.3 | 3.5 | 28 | 1 | 6.4 | Data sheet |
| 15CHD3-30 | 3 | 5.3 | 3.5 | 30 | 1 | 6.4 | Data sheet |
| 15CHD3-35 | 3 | 5.3 | 3.5 | 35 | 1 | 6.4 | Data sheet |
| 15CHD4-06 | 4 | 6 | 4.1 | 6 | 1 | 7.1 | Data sheet |
| 15CHD4-08 | 4 | 6 | 4.1 | 8 | 1 | 7.1 | Data sheet |
| 15CHD4-10 | 4 | 6 | 4.1 | 10 | 1 | 7.1 | Data sheet |
| 15CHD4-12 | 4 | 6 | 4.1 | 12 | 1 | 7.1 | Data sheet |
| 15CHD4-14 | 4 | 6 | 4.1 | 14 | 1 | 7.1 | Data sheet |
| 15CHD4-15 | 4 | 6 | 4.1 | 15 | 1 | 7.1 | Data sheet |
| 15CHD4-16 | 4 | 6 | 4.1 | 16 | 1 | 7.1 | Data sheet |
| 15CHD4-18 | 4 | 6 | 4.1 | 18 | 1 | 7.1 | Data sheet |
| 15CHD4-20 | 4 | 6 | 4.1 | 20 | 1 | 7.1 | Data sheet |
| 15CHD4-22 | 4 | 6 | 4.1 | 22 | 1 | 7.1 | Data sheet |
| 15CHD4-25 | 4 | 6 | 4.1 | 25 | 1 | 7.1 | Data sheet |
| 15CHD4-28 | 4 | 6 | 4.1 | 28 | 1 | 7.1 | Data sheet |
| 15CHD4-30 | 4 | 6 | 4.1 | 30 | 1 | 7.1 | Data sheet |
| 15CHD4-35 | 4 | 6 | 4.1 | 35 | 1 | 7.1 | Data sheet |
| 15CHD5-06 | 5 | 7.5 | 5.5 | 6 | 1 | 7.6 | Data sheet |
| 15CHD5-08 | 5 | 7.5 | 5.5 | 8 | 1 | 7.6 | Data sheet |
| 15CHD5-10 | 5 | 7.5 | 5.5 | 10 | 1 | 7.6 | Data sheet |
| 15CHD5-12 | 5 | 7.5 | 5.5 | 12 | 1 | 7.6 | Data sheet |
| 15CHD5-14 | 5 | 7.5 | 5.5 | 14 | 1 | 7.6 | Data sheet |
| 15CHD5-15 | 5 | 7.5 | 5.5 | 15 | 1 | 7.6 | Data sheet |
| 15CHD5-16 | 5 | 7.5 | 5.5 | 16 | 1 | 7.6 | Data sheet |
| 15CHD5-18 | 5 | 7.5 | 5.5 | 18 | 1 | 7.6 | Data sheet |
| 15CHD5-20 | 5 | 7.5 | 5.5 | 20 | 1 | 7.6 | Data sheet |
| 15CHD5-22 | 5 | 7.5 | 5.5 | 22 | 1 | 7.6 | Data sheet |
| 15CHD5-25 | 5 | 7.5 | 5.5 | 25 | 1 | 7.6 | Data sheet |
| 15CHD5-28 | 5 | 7.5 | 5.5 | 28 | 1 | 7.6 | Data sheet |
| 15CHD5-30 | 5 | 7.5 | 5.5 | 30 | 1 | 7.6 | Data sheet |
| 15CHD5-35 | 5 | 7.5 | 5.5 | 35 | 1 | 7.6 | Data sheet |
| 15CHD6-10 | 6 | 8.1 | 6.5 | 10 | 1 | 7.9 | Data sheet |
| 15CHD6-12 | 6 | 8.1 | 6.5 | 12 | 1 | 7.9 | Data sheet |
| 15CHD6-15 | 6 | 8.1 | 6.5 | 15 | 1 | 7.9 | Data sheet |
| 15CHD6-16 | 6 | 8.1 | 6.5 | 16 | 1 | 7.9 | Data sheet |
| 15CHD6-20 | 6 | 8.1 | 6.5 | 20 | 1 | 7.9 | Data sheet |
