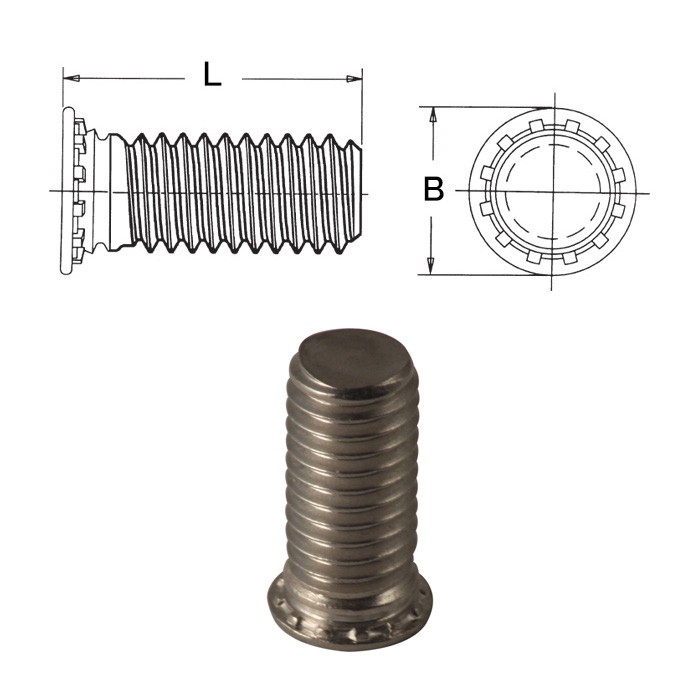

Self-clinching studs for sheet metal
sheet hardness max 80 HRB
Code |
Thread |
B +/-0.4 |
Hole Size +0.08 |
L |
Min. Sheet |
Minimum |
|
|---|---|---|---|---|---|---|---|
| 15CHM2.5-05 | M2.5 x 0.45 | 4.1 | 2.5 | 5 | 1 | 5.4 | Data sheet |
| 15CHM2.5-06 | M2.5 x 0.45 | 4.1 | 2.5 | 6 | 1 | 5.4 | Data sheet |
| 15CHM2.5-08 | M2.5 x 0.45 | 4.1 | 2.5 | 8 | 1 | 5.4 | Data sheet |
| 15CHM2.5-10 | M2.5 x 0.45 | 4.1 | 2.5 | 10 | 1 | 5.4 | Data sheet |
| 15CHM2.5-12 | M2.5 x 0.45 | 4.1 | 2.5 | 12 | 1 | 5.4 | Data sheet |
| 15CHM2.5-15 | M2.5 x 0.45 | 4.1 | 2.5 | 15 | 1 | 5.4 | Data sheet |
| 15CHM2.5-16 | M2.5 x 0.45 | 4.1 | 2.5 | 16 | 1 | 5.4 | Data sheet |
| 15CHM2.5-18 | M2.5 x 0.45 | 4.1 | 2.5 | 18 | 1 | 5.4 | Data sheet |
| 15CHM2.5-20 | M2.5 x 0.45 | 4.1 | 2.5 | 20 | 1 | 5.4 | Data sheet |
| 15CHM2.5-22 | M2.5 x 0.45 | 4.1 | 2.5 | 22 | 1 | 5.4 | Data sheet |
| 15CHM2.5-25 | M2.5 x 0.45 | 4.1 | 2.5 | 25 | 1 | 5.4 | Data sheet |
| 15CHM3-05 | M3 x 0.5 | 4.6 | 3.0 | 5 | 1 | 5.4 | Data sheet |
| 15CHM3-06 | M3 x 0.5 | 4.6 | 3.0 | 6 | 1 | 5.4 | Data sheet |
| 15CHM3-08 | M3 x 0.5 | 4.6 | 3.0 | 8 | 1 | 5.4 | Data sheet |
| 15CHM3-10 | M3 x 0.5 | 4.6 | 3.0 | 10 | 1 | 5.4 | Data sheet |
| 15CHM3-12 | M3 x 0.5 | 4.6 | 3.0 | 12 | 1 | 5.4 | Data sheet |
| 15CHM3-14 | M3 x 0.5 | 4.6 | 3.0 | 14 | 1 | 5.4 | Data sheet |
| 15CHM3-15 | M3 x 0.5 | 4.6 | 3.0 | 15 | 1 | 5.4 | Data sheet |
| 15CHM3-16 | M3 x 0.5 | 4.6 | 3.0 | 16 | 1 | 5.4 | Data sheet |
| 15CHM3-18 | M3 x 0.5 | 4.6 | 3.0 | 18 | 1 | 5.4 | Data sheet |
| 15CHM3-20 | M3 x 0.5 | 4.6 | 3.0 | 20 | 1 | 5.4 | Data sheet |
| 15CHM3-22 | M3 x 0.5 | 4.6 | 3.0 | 22 | 1 | 5.4 | Data sheet |
| 15CHM3-25 | M3 x 0.5 | 4.6 | 3.0 | 25 | 1 | 5.4 | Data sheet |
| 15CHM3-28 | M3 x 0.5 | 4.6 | 3.0 | 28 | 1 | 5.4 | Data sheet |
| 15CHM3-30 | M3 x 0.5 | 4.6 | 3.0 | 30 | 1 | 5.4 | Data sheet |
| 15CHM3-35 | M3 x 0.5 | 4.6 | 3.0 | 35 | 1 | 5.4 | Data sheet |
| 15CHM3-38 | M3 x 0.5 | 4.6 | 3.0 | 38 | 1 | 5.4 | Data sheet |
| 15CHM3-40 | M3 x 0.5 | 4.6 | 3.0 | 40 | 1 | 5.4 | Data sheet |
| 15CHM3-45 | M3 x 0.5 | 4.6 | 3.0 | 45 | 1 | 5.4 | Data sheet |
| 15CHM3-50 | M3 x 0.5 | 4.6 | 3.0 | 50 | 1 | 5.4 | Data sheet |
| 15CHM3-55 | M3 x 0.5 | 4.6 | 3.0 | 55 | 1 | 5.4 | Data sheet |
| 15CHM4-06 | M4 x 0.7 | 5.9 | 4.0 | 6 | 1 | 7.2 | Data sheet |
| 15CHM4-08 | M4 x 0.7 | 5.9 | 4.0 | 8 | 1 | 7.2 | Data sheet |
| 15CHM4-10 | M4 x 0.7 | 5.9 | 4.0 | 10 | 1 | 7.2 | Data sheet |
| 15CHM4-12 | M4 x 0.7 | 5.9 | 4.0 | 12 | 1 | 7.2 | Data sheet |
| 15CHM4-14 | M4 x 0.7 | 5.9 | 4.0 | 14 | 1 | 7.2 | Data sheet |
| 15CHM4-15 | M4 x 0.7 | 5.9 | 4.0 | 15 | 1 | 7.2 | Data sheet |
| 15CHM4-16 | M4 x 0.7 | 5.9 | 4.0 | 16 | 1 | 7.2 | Data sheet |
| 15CHM4-18 | M4 x 0.7 | 5.9 | 4.0 | 18 | 1 | 7.2 | Data sheet |
| 15CHM4-20 | M4 x 0.7 | 5.9 | 4.0 | 20 | 1 | 7.2 | Data sheet |
| 15CHM4-22 | M4 x 0.7 | 5.9 | 4.0 | 22 | 1 | 7.2 | Data sheet |
| 15CHM4-25 | M4 x 0.7 | 5.9 | 4.0 | 25 | 1 | 7.2 | Data sheet |
| 15CHM4-28 | M4 x 0.7 | 5.9 | 4.0 | 28 | 1 | 7.2 | Data sheet |
| 15CHM4-30 | M4 x 0.7 | 5.9 | 4.0 | 30 | 1 | 7.2 | Data sheet |
| 15CHM4-35 | M4 x 0.7 | 5.9 | 4.0 | 35 | 1 | 7.2 | Data sheet |
| 15CHM4-38 | M4 x 0.7 | 5.9 | 4.0 | 38 | 1 | 7.2 | Data sheet |
| 15CHM4-40 | M4 x 0.7 | 5.9 | 4.0 | 40 | 1 | 7.2 | Data sheet |
| 15CHM4-45 | M4 x 0.7 | 5.9 | 4.0 | 45 | 1 | 7.2 | Data sheet |
| 15CHM5-06 | M5 x 0.8 | 6.5 | 5.0 | 6 | 1 | 7.2 | Data sheet |
| 15CHM5-08 | M5 x 0.8 | 6.5 | 5.0 | 8 | 1 | 7.2 | Data sheet |
| 15CHM5-10 | M5 x 0.8 | 6.5 | 5.0 | 10 | 1 | 7.2 | Data sheet |
| 15CHM5-12 | M5 x 0.8 | 6.5 | 5.0 | 12 | 1 | 7.2 | Data sheet |
| 15CHM5-14 | M5 x 0.8 | 6.5 | 5.0 | 14 | 1 | 7.2 | Data sheet |
| 15CHM5-15 | M5 x 0.8 | 6.5 | 5.0 | 15 | 1 | 7.2 | Data sheet |
| 15CHM5-16 | M5 x 0.8 | 6.5 | 5.0 | 16 | 1 | 7.2 | Data sheet |
| 15CHM5-18 | M5 x 0.8 | 6.5 | 5.0 | 18 | 1 | 7.2 | Data sheet |
| 15CHM5-20 | M5 x 0.8 | 6.5 | 5.0 | 20 | 1 | 7.2 | Data sheet |
| 15CHM5-22 | M5 x 0.8 | 6.5 | 5.0 | 22 | 1 | 7.2 | Data sheet |
| 15CHM5-25 | M5 x 0.8 | 6.5 | 5.0 | 25 | 1 | 7.2 | Data sheet |
| 15CHM5-28 | M5 x 0.8 | 6.5 | 5.0 | 28 | 1 | 7.2 | Data sheet |
| 15CHM5-30 | M5 x 0.8 | 6.5 | 5.0 | 30 | 1 | 7.2 | Data sheet |
| 15CHM5-35 | M5 x 0.8 | 6.5 | 5.0 | 35 | 1 | 7.2 | Data sheet |
| 15CHM5-38 | M5 x 0.8 | 6.5 | 5.0 | 38 | 1 | 7.2 | Data sheet |
| 15CHM5-40 | M5 x 0.8 | 6.5 | 5.0 | 40 | 1 | 7.2 | Data sheet |
| 15CHM5-45 | M5 x 0.8 | 6.5 | 5.0 | 45 | 1 | 7.2 | Data sheet |
| 15CHM5-50 | M5 x 0.8 | 6.5 | 5.0 | 50 | 1 | 7.2 | Data sheet |
| 15CHM6-06 | M6 x 1 | 8.2 | 6.0 | 6 | 1.6 | 7.9 | Data sheet |
| 15CHM6-08 | M6 x 1 | 8.2 | 6.0 | 8 | 1.6 | 7.9 | Data sheet |
| 15CHM6-10 | M6 x 1 | 8.2 | 6.0 | 10 | 1.6 | 7.9 | Data sheet |
| 15CHM6-12 | M6 x 1 | 8.2 | 6.0 | 12 | 1.6 | 7.9 | Data sheet |
| 15CHM6-14 | M6 x 1 | 8.2 | 6.0 | 14 | 1.6 | 7.9 | Data sheet |
| 15CHM6-15 | M6 x 1 | 8.2 | 6.0 | 15 | 1.6 | 7.9 | Data sheet |
| 15CHM6-16 | M6 x 1 | 8.2 | 6.0 | 16 | 1.6 | 7.9 | Data sheet |
| 15CHM6-18 | M6 x 1 | 8.2 | 6.0 | 18 | 1.6 | 7.9 | Data sheet |
| 15CHM6-20 | M6 x 1 | 8.2 | 6.0 | 20 | 1.6 | 7.9 | Data sheet |
| 15CHM6-22 | M6 x 1 | 8.2 | 6.0 | 22 | 1.6 | 7.9 | Data sheet |
| 15CHM6-25 | M6 x 1 | 8.2 | 6.0 | 25 | 1.6 | 7.9 | Data sheet |
| 15CHM6-28 | M6 x 1 | 8.2 | 6.0 | 28 | 1.6 | 7.9 | Data sheet |
| 15CHM6-30 | M6 x 1 | 8.2 | 6.0 | 30 | 1.6 | 7.9 | Data sheet |
| 15CHM6-35 | M6 x 1 | 8.2 | 6.0 | 35 | 1.6 | 7.9 | Data sheet |
| 15CHM6-38 | M6 x 1 | 8.2 | 6.0 | 38 | 1.6 | 7.9 | Data sheet |
| 15CHM6-40 | M6 x 1 | 8.2 | 6.0 | 40 | 1.6 | 7.9 | Data sheet |
| 15CHM6-45 | M6 x 1 | 8.2 | 6.0 | 45 | 1.6 | 7.9 | Data sheet |
| 15CHM6-50 | M6 x 1 | 8.2 | 6.0 | 50 | 1.6 | 7.9 | Data sheet |
| 15CHM8-08 | M8 x 1.25 | 9.6 | 8.0 | 8 | 2.4 | 9.6 | Data sheet |
| 15CHM8-10 | M8 x 1.25 | 9.6 | 8.0 | 10 | 2.4 | 9.6 | Data sheet |
| 15CHM8-12 | M8 x 1.25 | 9.6 | 8.0 | 12 | 2.4 | 9.6 | Data sheet |
| 15CHM8-14 | M8 x 1.25 | 9.6 | 8.0 | 14 | 2.4 | 9.6 | Data sheet |
| 15CHM8-15 | M8 x 1.25 | 9.6 | 8.0 | 15 | 2.4 | 9.6 | Data sheet |
| 15CHM8-16 | M8 x 1.25 | 9.6 | 8.0 | 16 | 2.4 | 9.6 | Data sheet |
| 15CHM8-18 | M8 x 1.25 | 9.6 | 8.0 | 18 | 2.4 | 9.6 | Data sheet |
| 15CHM8-20 | M8 x 1.25 | 9.6 | 8.0 | 20 | 2.4 | 9.6 | Data sheet |
| 15CHM8-22 | M8 x 1.25 | 9.6 | 8.0 | 22 | 2.4 | 9.6 | Data sheet |
| 15CHM8-25 | M8 x 1.25 | 9.6 | 8.0 | 25 | 2.4 | 9.6 | Data sheet |
| 15CHM8-28 | M8 x 1.25 | 9.6 | 8.0 | 28 | 2.4 | 9.6 | Data sheet |
| 15CHM8-30 | M8 x 1.25 | 9.6 | 8.0 | 30 | 2.4 | 9.6 | Data sheet |
| 15CHM8-35 | M8 x 1.25 | 9.6 | 8.0 | 35 | 2.4 | 9.6 | Data sheet |
| 15CHM8-38 | M8 x 1.25 | 9.6 | 8.0 | 38 | 2.4 | 9.6 | Data sheet |
| 15CHM8-40 | M8 x 1.25 | 9.6 | 8.0 | 40 | 2.4 | 9.6 | Data sheet |
| 15CHM8-45 | M8 x 1.25 | 9.6 | 8.0 | 45 | 2.4 | 9.6 | Data sheet |
| 15CHM8-50 | M8 x 1.25 | 9.6 | 8.0 | 50 | 2.4 | 9.6 | Data sheet |
| 15CHM8-60 | M8 x 1.25 | 9.6 | 8.0 | 60 | 2.4 | 9.6 | Data sheet |
| 15CHM10-15 | M10 x 1.5 | 12.6 | 10.0 | 15 | 2.4 | 18.3 | Data sheet |
| 15CHM10-20 | M10 x 1.5 | 12.6 | 10.0 | 20 | 2.4 | 18.3 | Data sheet |
| 15CHM10-25 | M10 x 1.5 | 12.6 | 10.0 | 25 | 2.4 | 18.3 | Data sheet |
| 15CHM10-30 | M10 x 1.5 | 12.6 | 10.0 | 30 | 2.4 | 18.3 | Data sheet |
| 15CHM10-35 | M10 x 1.5 | 12.6 | 10.0 | 35 | 2.4 | 18.3 | Data sheet |
