Hexagonal steel threaded inserts - Flat head

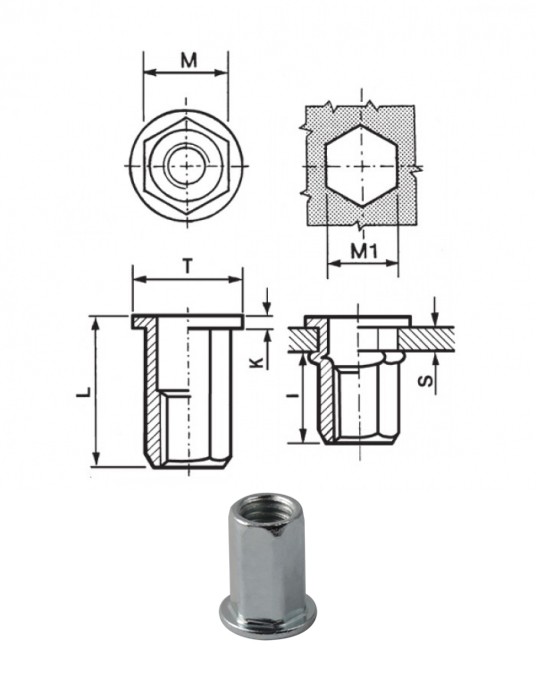

Code |
|
S GRIP |
M +0,07-0,1 |
M1 +0,1/-0 |
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85ACITTEM04C | M4 | 0.5 - 2 | 5.9 | 6 | 9 | 0.8 | 11 | 6.5 | 5 | Data sheet |
| 85ACITTEM04L | M4 | 2 - 4 | 5.9 | 6 | 9 | 0.8 | 13.5 | 6.5 | 5 | Data sheet |
| 85ACITTEM05C | M5 | 0.5 - 3 | 6.9 | 7 | 10 | 1 | 14 | 8 | 8.5 | Data sheet |
| 85ACITTEM05L | M5 | 3 - 6 | 6.9 | 7 | 10 | 1 | 16.5 | 8 | 8.5 | Data sheet |
| 85ACITTEM06C | M6 | 0.5 - 3 | 8.9 | 9 | 13 | 1.2 | 16 | 9.5 | 15 | Data sheet |
| 85ACITTEM06L | M6 | 3 - 5 | 8.9 | 9 | 13 | 1.5 | 19.5 | 8.5 | 15 | Data sheet |
| 85ACITTEM08C | M8 | 1 - 3.5 | 10.9 | 11 | 16 | 1.5 | 17 | 9.5 | 26 | Data sheet |
| 85ACITTEM08L | M8 | 3.5 - 6 | 10.9 | 11 | 15 | 1.5 | 21.5 | 10.5 | 26 | Data sheet |
| 85ACITTEM10C12 | M10 | 1 - 3.5 | 11.9 | 12 | 18 | 1.7 | 21 | 13.5 | 50 | Data sheet |
| 85ACITTEM10C13 | M10 | 1 - 3.5 | 12.9 | 13 | 18 | 1.7 | 21 | 13.6 | 50 | Data sheet |
| 85ACITTEM10L13 | M10 | 3.5 - 6.5 | 12.9 | 13 | 19 | 1.7 | 24 | 14.5 | 50 | Data sheet |
| 85ACITTEM12C15 | M12 | 1 - 3.5 | 14.9 | 15 | 19 | 2 | 24.3 | 16 | 80 | Data sheet |
| 85ACITTEM12C16 | M12 | 2 - 5 | 15.9 | 16 | 23 | 2 | 27 | 16.5 | 80 | Data sheet |
