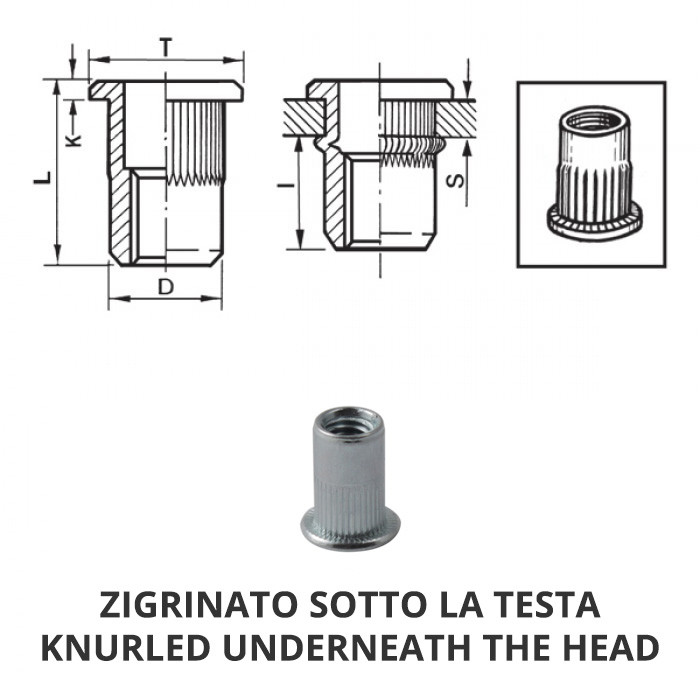

Knurled cylindrical steel threaded inserts - Flat head
Code |
|
S GRIP |
D +0,07/-0,1 |
+0,1-0
|
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85ACITTGM03C | M3 | 0.5 - 1.5 | 4.9 | 5 | 8 | 0.8 | 10 | 6 | 2 | Data sheet |
| 85ACITTGM03L | M3 | 1.5 - 3 | 4.9 | 5 | 7 | 0.8 | 11.5 | 8 | 2 | Data sheet |
| 85ACITTGM04C | M4 | 0.5 - 2 | 5.9 | 6 | 9 | 0.8 | 10.5 | 6 | 5 | Data sheet |
| 85ACITTGM04L | M4 | 2 - 3.5 | 5.9 | 6 | 9 | 0.8 | 12 | 6 | 5 | Data sheet |
| 85ACITTGM05C | M5 | 0.5 - 2.5 | 6.9 | 7 | 10 | 1 | 13 | 7.5 | 8.5 | Data sheet |
| 85ACITTGM05L | M5 | 2.5 - 5 | 6.9 | 7 | 10 | 1 | 16.5 | 8.5 | 8.5 | Data sheet |
| 85ACITTGM06C | M6 | 0.5 - 3 | 8.9 | 9 | 12.3 | 1.3 | 15 | 9.2 | 15 | Data sheet |
| 85ACITTGM06L | M6 | 3 - 5.5 | 8.9 | 9 | 12.3 | 1.3 | 19.5 | 10.5 | 15 | Data sheet |
| 85ACITTGM08C | M8 | 1 - 3.5 | 10.9 | 11 | 14.5 | 1.5 | 18.5 | 11.5 | 26 | Data sheet |
| 85ACITTGM08L | M8 | 3.5 - 6 | 10.9 | 11 | 14.5 | 1.5 | 21 | 11.5 | 26 | Data sheet |
| 85ACITTGM10C12 | M10 | 1 - 3.5 | 11.9 | 12 | 16 | 1.7 | 19 | 12.5 | 50 | Data sheet |
| 85ACITTGM10L12 | M10 | 3 - 6 | 11.9 | 12 | 16 | 1.6 | 24 | 18.5 | 50 | Data sheet |
| 85ACITTGM10C13 | M10 | 1 - 4 | 12.9 | 13 | 17 | 1.7 | 21.5 | 13.5 | 50 | Data sheet |
| 85ACITTGM10L13 | M10 | 4 - 6.5 | 12.9 | 13 | 17 | 1.7 | 24 | 13.5 | 50 | Data sheet |
| 85ACITTGM12C15 | M12 | 1 - 4 | 14.9 | 15 | 18 | 1.7 | 22 | 13.5 | 80 | Data sheet |
| 85ACITTGM12L15 | M12 | 4 - 6.5 | 14.9 | 15 | 18 | 1.7 | 25 | 14 | 80 | Data sheet |
| 85ACITTGM12C16 | M12 | 1 - 3.5 | 15.9 | 16 | 22 | 2 | 25 | 15 | 80 | Data sheet |
| 85ACITTGM12L16 | M12 | 3.5 - 6 | 15.9 | 16 | 22 | 2 | 28 | 16.5 | 80 | Data sheet |
