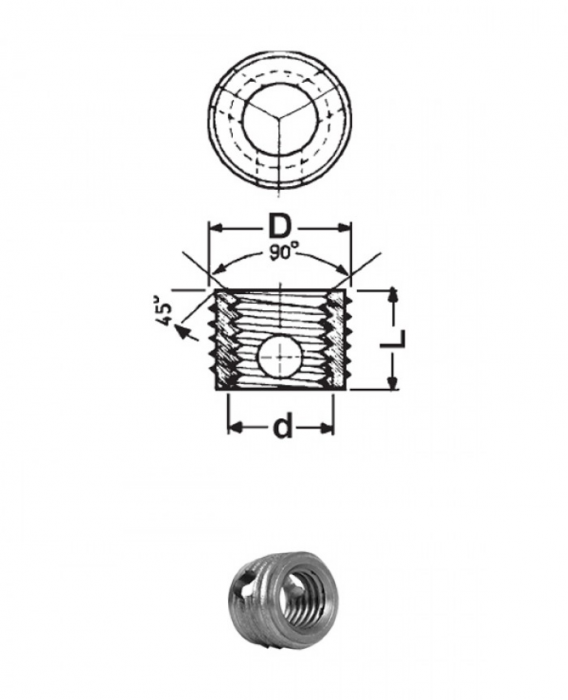

Self-tapping threaded inserts - Steel hardened
Code |
D |
|
L |
|
d |
|
|---|---|---|---|---|---|---|
| 83ACF318M04-C | 6.5 x 0.8 | 6.0 - 6.2 | 6 | 8 | M4.0 x 0.7 | Data sheet |
| 83ACF318M04-L | 6.5 x 0.8 | 6.0 - 6.2 | 8 | 10 | M4.0 x 0.7 | Data sheet |
| 83ACF318M05-C | 8.0 x 1.0 | 7.4 - 7.7 | 7 | 9 | M5.0 x 0.8 | Data sheet |
| 83ACF318M05-L | 8.0 x 1.0 | 7.4 - 7.7 | 10 | 13 | M5.0 x 0.8 | Data sheet |
| 83ACF318M06-C | 10.0 x 1.25 | 9.3 - 9.6 | 8 | 10 | M6.0 x 1.0 | Data sheet |
| 83ACF318M06-L | 10.0 x 1.25 | 9.3 - 9.6 | 12 | 15 | M6.0 x 1.0 | Data sheet |
| 83ACF318M08-C | 12.0 x 1.5 | 11.1 - 11.5 | 9 | 11 | M8.0 x 1.25 | Data sheet |
| 83ACF318M08-L | 12.0 x 1.5 | 11.1 - 11.5 | 14 | 17 | M8.0 x 1.25 | Data sheet |
| 83ACF318M10-C | 14.0 x 1.5 | 13.1 - 13.5 | 10 | 13 | M10.0 x 1.5 | Data sheet |
| 83ACF318M10-L | 14.0 x 1.5 | 13.1 - 13.5 | 18 | 22 | M10.0 x 1.5 | Data sheet |
| 83ACF318M12-C | 16.0 x 1.75 | 15.0 - 15.4 | 12 | 15 | M12.0 x 1.75 | Data sheet |
| 83ACF318M12-L | 16.0 x 1.75 | 15.0 - 15.4 | 22 | 26 | M12.0 x 1.75 | Data sheet |
| 83ACF318M14-C | 18.0 x 2.0 | 17.0 - 17.4 | 14 | 17 | M14.0 x 2.0 | Data sheet |
| 83ACF318M14-L | 18.0 x 2.0 | 17.0 - 17.4 | 24 | 28 | M14.0 x 2.0 | Data sheet |
| 83ACF318M16-C | 20,0 x 2,0 | 19,0 - 19,4 | 14 | 17 | M16.0 x 2,0 | Data sheet |
| 83ACF318M16-L | 20,0 x 2,0 | 19,0 - 19,4 | 24 | 28 | M16 x 2,0 | Data sheet |
