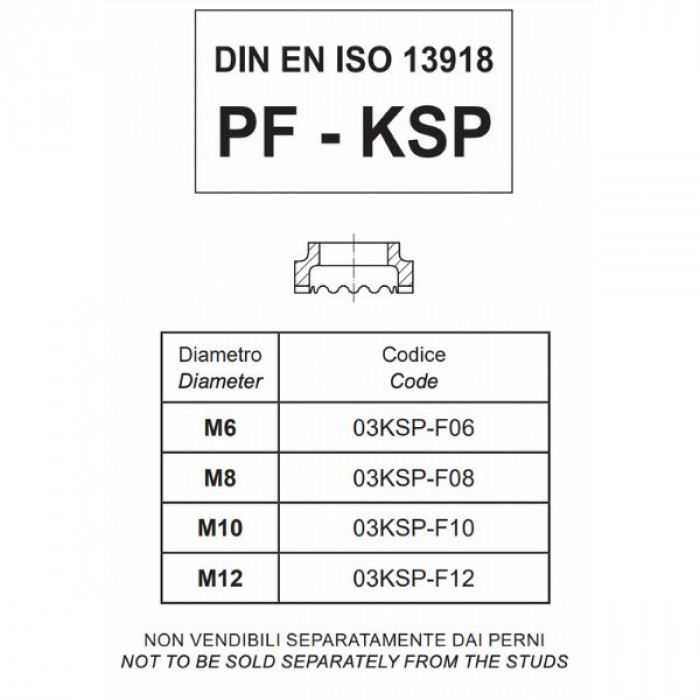

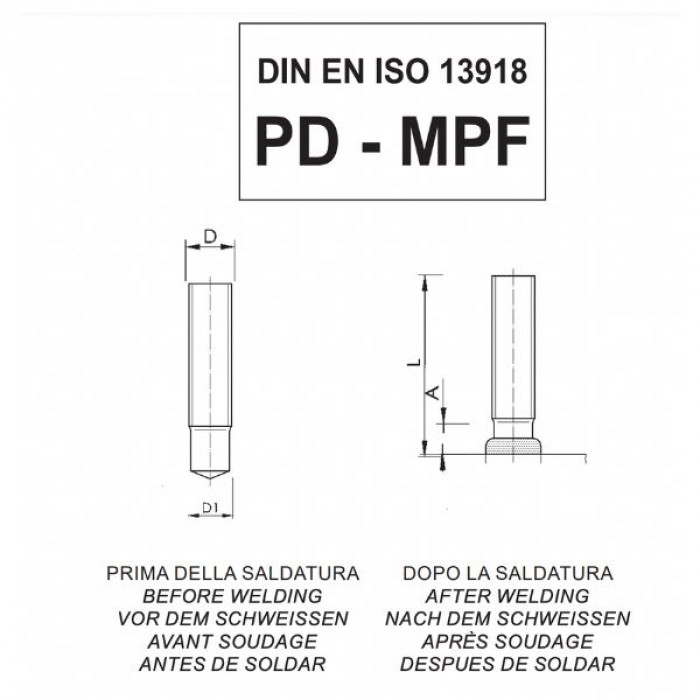

Drawn-arc studs with ceramic ferrules
Code |
D +/-0,2 |
L |
D1 |
A |
|
|---|---|---|---|---|---|
| 03IXPR615MPF | M6 | 15 | 5,3 | 4,5 | Data sheet |
| 03IXPR620MPF | M6 | 20 | 5,3 | 4,5 | Data sheet |
| 03IXPR625MPF | M6 | 25 | 5,3 | 4,5 | Data sheet |
| 03IXPR630MPF | M6 | 30 | 5,3 | 4,5 | Data sheet |
| 03IXPR635MPF | M6 | 35 | 5,3 | 4,5 | Data sheet |
| 03IXPR640MPF | M6 | 40 | 5,3 | 4,5 | Data sheet |
| 03IXPR645MPF | M6 | 45 | 5,3 | 4,5 | Data sheet |
| 03IXPR650MPF | M6 | 50 | 5,3 | 4,5 | Data sheet |
| 03IXPR655MPF | M6 | 55 | 5,3 | 4,5 | Data sheet |
| 03IXPR660MPF | M6 | 60 | 5,3 | 4,5 | Data sheet |
| 03IXPR670MPF | M6 | 70 | 5,3 | 4,5 | Data sheet |
| 03IXPR680MPF | M6 | 80 | 5,3 | 4,5 | Data sheet |
| 03IXPR690MPF | M6 | 90 | 5,3 | 4,5 | Data sheet |
| 03IXPR6100MPF | M6 | 100 | 5,3 | 4,5 | Data sheet |
| 03IXPR815MPF | M8 | 15 | 7,1 | 5,0 | Data sheet |
| 03IXPR820MPF | M8 | 20 | 7,1 | 5,0 | Data sheet |
| 03IXPR825MPF | M8 | 25 | 7,1 | 5,0 | Data sheet |
| 03IXPR830MPF | M8 | 30 | 7,1 | 5,0 | Data sheet |
| 03IXPR835MPF | M8 | 35 | 7,1 | 5,0 | Data sheet |
| 03IXPR840MPF | M8 | 40 | 7,1 | 5,0 | Data sheet |
| 03IXPR845MPF | M8 | 45 | 7,1 | 5,0 | Data sheet |
| 03IXPR850MPF | M8 | 50 | 7,1 | 5,0 | Data sheet |
| 03IXPR855MPF | M8 | 55 | 7,1 | 5,0 | Data sheet |
| 03IXPR860MPF | M8 | 60 | 7,1 | 5,0 | Data sheet |
| 03IXPR870MPF | M8 | 70 | 7,1 | 5,0 | Data sheet |
| 03IXPR880MPF | M8 | 80 | 7,1 | 5,0 | Data sheet |
| 03IXPR890MPF | M8 | 90 | 7,1 | 5,0 | Data sheet |
| 03IXPR8100MPF | M8 | 100 | 7,1 | 5,0 | Data sheet |
| 03IXPR1015MPF | M10 | 15 | 8,95 | 5,5 | Data sheet |
| 03IXPR1020MPF | M10 | 20 | 8,95 | 5,5 | Data sheet |
| 03IXPR1025MPF | M10 | 25 | 8,95 | 5,5 | Data sheet |
| 03IXPR1030MPF | M10 | 30 | 8,95 | 5,5 | Data sheet |
| 03IXPR1035MPF | M10 | 35 | 8,95 | 5,5 | Data sheet |
| 03IXPR1040MPF | M10 | 40 | 8,95 | 5,5 | Data sheet |
| 03IXPR1045MPF | M10 | 45 | 8,95 | 5,5 | Data sheet |
| 03IXPR1050MPF | M10 | 50 | 8,95 | 5,5 | Data sheet |
| 03IXPR1055MPF | M10 | 55 | 8,95 | 5,5 | Data sheet |
| 03IXPR1060MPF | M10 | 60 | 8,95 | 5,5 | Data sheet |
| 03IXPR1070MPF | M10 | 70 | 8,95 | 5,5 | Data sheet |
| 03IXPR1080MPF | M10 | 80 | 8,95 | 5,5 | Data sheet |
| 03IXPR1090MPF | M10 | 90 | 8,95 | 5,5 | Data sheet |
| 03IXPR10100MPF | M10 | 100 | 8,95 | 5,5 | Data sheet |
| 03IXPR1220MPF | M12 | 20 | 10,5 | 6,5 | Data sheet |
| 03IXPR1225MPF | M12 | 25 | 10,5 | 6,5 | Data sheet |
| 03IXPR1230MPF | M12 | 30 | 10,5 | 6,5 | Data sheet |
| 03IXPR1235MPF | M12 | 35 | 10,5 | 6,5 | Data sheet |
| 03IXPR1240MPF | M12 | 40 | 10,5 | 6,5 | Data sheet |
| 03IXPR1245MPF | M12 | 45 | 10,5 | 6,5 | Data sheet |
| 03IXPR1250MPF | M12 | 50 | 10,5 | 6,5 | Data sheet |
| 03IXPR1255MPF | M12 | 55 | 10,5 | 6,5 | Data sheet |
| 03IXPR1260MPF | M12 | 60 | 10,5 | 6,5 | Data sheet |
| 03IXPR1270MPF | M12 | 70 | 10,5 | 6,5 | Data sheet |
| 03IXPR1280MPF | M12 | 80 | 10,5 | 6,5 | Data sheet |
| 03IXPR1290MPF | M12 | 90 | 10,5 | 6,5 | Data sheet |
| 03IXPR12100MPF | M12 | 100 | 10,5 | 6,5 | Data sheet |
Ask for a quotation
