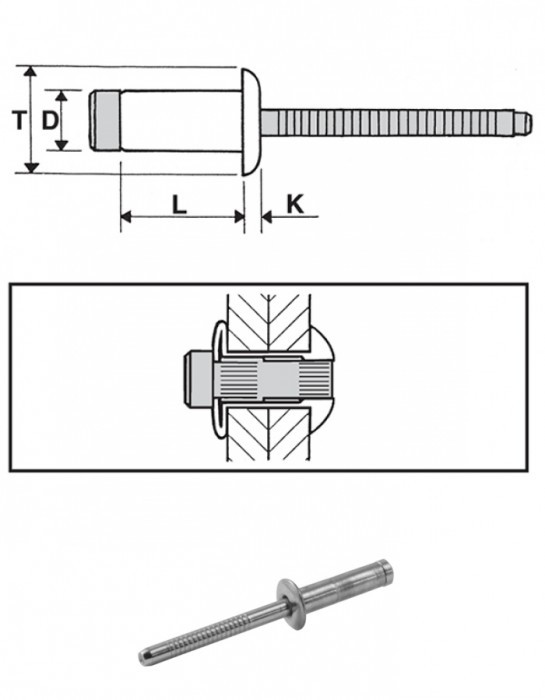

Structural blind rivets steel zinc plated / steel zinc plated - Dome head

Code



D

+0,08/-0,15

L

+1/-0,2

T



K

max 		Dia hole Thickness   Strength   Shear strenght   Download the data sheet of the product of your interest
01MBX6412TTIXMX 6,4 12 13,4 3,1 6,6 - 7,0 1,5 - 5,5 8000N 14000N Data sheet
01MBX6416TTIXMX 6,4 16 13,4 3,1 5 - 9 5 - 9 8000N 14000N Data sheet
Structural blind rivets steel zinc plated / steel zinc plated - Dome head

Ask for a quotation
