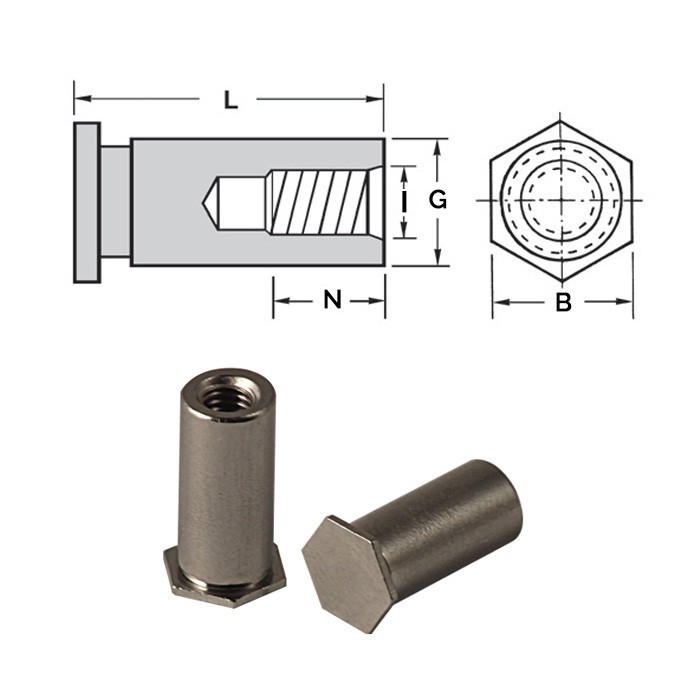

Blind threaded self-clinching standoffs for sheet metal
sheet hardness max 90 HRB
Code |
Thread |
B |
Hole Size +0.08 |
G -0.13 |
L |
N |
I +/-0.13 |
Min. Sheet |
Minimum |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 15CFBSOSM2.5-04A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 4 | 0 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM2.5-05A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 5 | 0 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM2.5-06A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 6 | 3.2 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM2.5-08A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 8 | 4 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM2.5-10A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 10 | 4 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM2.5-12A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 12 | 5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM2.5-14A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 14 | 6.5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM2.5-16A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 16 | 6.5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM2.5-18A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 18 | 9.5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM2.5-20A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 20 | 9.5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-03A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 3 | 0 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-04A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 4 | 0 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-05A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 5 | 3.2 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-06A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 6 | 4 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-08A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 8 | 4 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-10A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 10 | 5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-12A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 12 | 6.5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-14A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 14 | 6.5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-16A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 16 | 9.5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-18A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 18 | 9.5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-20A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 20 | 9.5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-22A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 22 | 9.5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOSM3-25A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 25 | 9.5 | 3.2 | 1 | 6 | Data sheet |
| 15CFBSOS35M3-04A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 4 | 0 | 3.2 | 1 | 7 | Data sheet |
| 15CFBSOS35M3-05A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 5 | 0 | 3.2 | 1 | 7 | Data sheet |
| 15CFBSOS35M3-06A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 6 | 3.2 | 3.2 | 1 | 7 | Data sheet |
| 15CFBSOS35M3-08A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 8 | 4 | 3.2 | 1 | 7 | Data sheet |
| 15CFBSOS35M3-10A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 10 | 4 | 3.2 | 1 | 7 | Data sheet |
| 15CFBSOS35M3-12A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 12 | 5 | 3.2 | 1 | 7 | Data sheet |
| 15CFBSOS35M3-14A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 14 | 6.5 | 3.2 | 1 | 7 | Data sheet |
| 15CFBSOS35M3-16A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 16 | 6.5 | 3.2 | 1 | 7 | Data sheet |
| 15CFBSOS35M3-18A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 18 | 9.5 | 3.2 | 1 | 7 | Data sheet |
| 15CFBSOS35M3-20A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 20 | 9.5 | 3.2 | 1 | 7 | Data sheet |
| 15CFBSOS35M3-22A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 22 | 9.5 | 3.2 | 1 | 7 | Data sheet |
| 15CFBSOS35M3-25A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 25 | 9.5 | 3.2 | 1 | 7 | Data sheet |
| 15CFBSOSM4-06A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 6 | 3.2 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFBSOSM4-08A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 8 | 4 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFBSOSM4-10A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 10 | 4 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFBSOSM4-12A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 12 | 5 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFBSOSM4-14A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 14 | 6.5 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFBSOSM4-16A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 16 | 6.5 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFBSOSM4-18A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 18 | 9.5 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFBSOSM4-20A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 20 | 9.5 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFBSOSM4-22A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 22 | 9.5 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFBSOSM4-25A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 25 | 9.5 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFBSOSM5-06A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 6 | 3.2 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFBSOSM5-08A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 8 | 4 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFBSOSM5-10A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 10 | 4 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFBSOSM5-12A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 12 | 5 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFBSOSM5-14A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 14 | 6.5 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFBSOSM5-16A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 16 | 6.5 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFBSOSM5-18A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 18 | 9.5 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFBSOSM5-20A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 20 | 9.5 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFBSOSM5-22A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 22 | 9.5 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFBSOSM5-25A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 25 | 9.5 | 5.2 | 1.3 | 8 | Data sheet |
