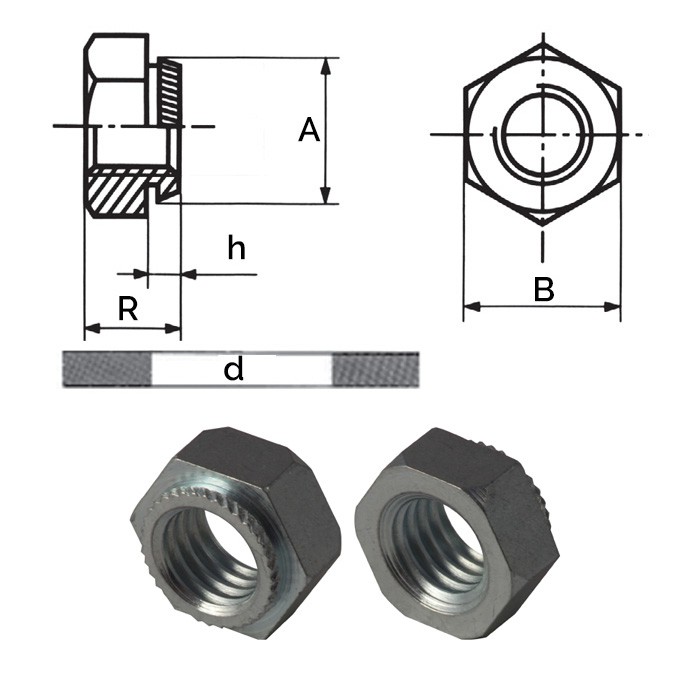

Hexagonal self-clinching nuts for sheet metal
sheet hardness max 70 HRB
Code |
h |
Thread |
A |
B |
Hole Size d |
Min. Sheet |
R |
|
|---|---|---|---|---|---|---|---|---|
| 15KALEI02IX | 0.9 | M2 x 0.4 | 4.7 | 5.5 | 4.5 | 1 | 3 | Data sheet |
| 15KALEI025IX | 0.9 | M2.5 x 0.45 | 4.7 | 5.5 | 4.5 | 1 | 3 | Data sheet |
| 15KALEI02514IX | 1.4 | M2.5 x 0.45 | 4.7 | 5.5 | 4.5 | 1.5 | 3 | Data sheet |
| 15KALEI02518IX | 1.8 | M2.5 x 0.45 | 4.7 | 5.5 | 4.5 | 2 | 3 | Data sheet |
| 15KALEI03IX | 0.9 | M3 x 0.5 | 4.7 | 5.5 | 4.5 | 1 | 3 | Data sheet |
| 15KALEI0314IX | 1.4 | M3 x 0.5 | 4.7 | 5.5 | 4.5 | 1.5 | 3 | Data sheet |
| 15KALEI0318IX | 1.8 | M3 x 0.5 | 4.7 | 5.5 | 4.5 | 2 | 3 | Data sheet |
| 15KALEI04IX | 0.9 | M4 x 0.7 | 5.7 | 7 | 5.5 | 1 | 3.2 | Data sheet |
| 15KALEI0414IX | 1.4 | M4 x 0.7 | 5.7 | 7 | 5.5 | 1.5 | 3.2 | Data sheet |
| 15KALEI0418IX | 1.8 | M4 x 0.7 | 5.7 | 7 | 5.5 | 2 | 4.5 | Data sheet |
| 15KALEI05IX | 0.9 | M5 x 0.8 | 7.15 | 8 | 6.5 | 1 | 4 | Data sheet |
| 15KALEI0514IX | 1.4 | M5 x 0.8 | 7.15 | 8 | 6.5 | 1.5 | 4 | Data sheet |
| 15KALEI0518IX | 1.8 | M5 x 0.8 | 7.15 | 8 | 6.5 | 2 | 5 | Data sheet |
| 15KALEI06IX | 0.9 | M6 x 1 | 8.3 | 10 | 8 | 1 | 5 | Data sheet |
| 15KALEI0614IX | 1.4 | M6 x 1 | 8.3 | 10 | 8 | 1.5 | 5 | Data sheet |
| 15KALEI0618IX | 1.8 | M6 x 1 | 8.3 | 10 | 8 | 2 | 5 | Data sheet |
| 15KALEI0818IX | 1.8 | M8 x 1.25 | 10.3 | 13 | 10 | 2 | 6.5 | Data sheet |
| 15KALEI1018IX | 1.8 | M10 x 1.5 | 13.25 | 15 | 12.5 | 2 | 8 | Data sheet |
| 15KALEI1228IX | 2.8 | M12 x 1.75 | 15.25 | 17 | 14.5 | 3 | 10 | Data sheet |
| 15KALEI1624IX | 2.4 | M16 x 2 | 19.25 | 22 | 18.5 | 3 | 13 | Data sheet |
| 15KALEI2038IX | 3.8 | M20 x 2.5 | 23.4 | 27 | 23 | 4 | 16 | Data sheet |
| 3.8 | M20 x 2.5 | 23.4 | 23 | 4 | 16 | Data sheet |
