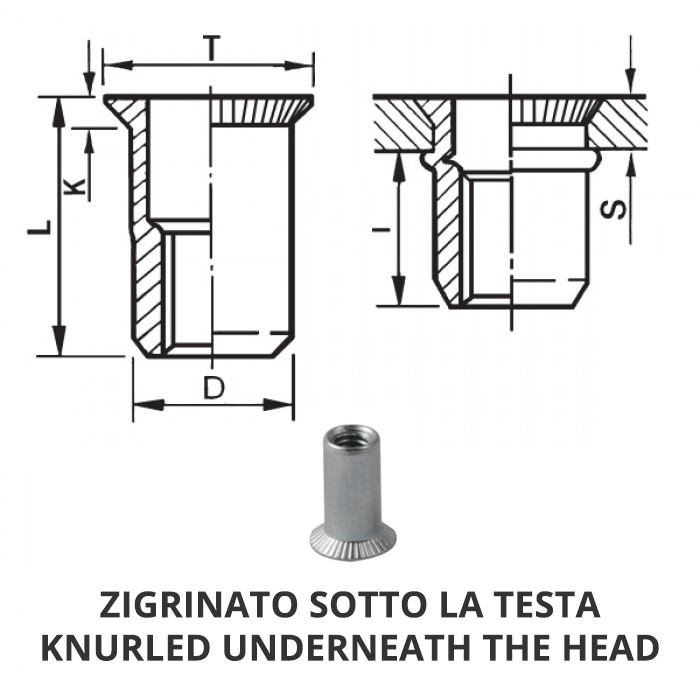

Cylindrical aluminium threaded inserts - Countersunk head
Code |
|
S GRIP |
D +0,07-0,1 |
+0,1/-0
|
T +/0,3 |
K +/0,15 |
L +/0,3 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85ALITSM03C | M3 | 2 - 3 | 4,9 | 5 | 8 | 1.5 | 9.5 | 5 | 0.7 | Data sheet |
| 85ALITSM03L | M3 | 3 - 4 | 4.9 | 5 | 8 | 1.5 | 10.5 | 5 | 0.7 | Data sheet |
| 85ALITSM04C | M4 | 1.5 - 3 | 5.9 | 6 | 9 | 1.5 | 12 | 6 | 2.5 | Data sheet |
| 85ALITSM04L | M4 | 2.5 - 4 | 5.9 | 6 | 9 | 1.5 | 13 | 6 | 2.5 | Data sheet |
| 85ALITSM05C | M5 | 1.5 - 3 | 6.9 | 7 | 10 | 1.5 | 13 | 7 | 5 | Data sheet |
| 85ALITSM05L | M5 | 4 - 6 | 6.9 | 7 | 10 | 1.5 | 15 | 7 | 5 | Data sheet |
| 85ALITSM06C | M6 | 1.5 - 4 | 8.9 | 9 | 12 | 1.5 | 15.5 | 9 | 8 | Data sheet |
| 85ALITSM06L | M6 | 4 - 6 | 8.9 | 9 | 12 | 1.5 | 17 | 9 | 8 | Data sheet |
| 85ALITSM08C | M8 | 1.5 - 4 | 10.9 | 11 | 14 | 1.5 | 18.5 | 10 | 20 | Data sheet |
| 85ALITSM08L | M8 | 4 - 6 | 10.9 | 11 | 13.3 | 1.5 | 20 | 10 | 20 | Data sheet |
| 85ALITSM10C12 | M10 | 1.5 - 4 | 11.9 | 12 | 15 | 1.5 | 18 | 11.5 | 25 | Data sheet |
| 85ALITSM10L12 | M10 | 3 - 6 | 11.9 | 12 | 15 | 1.5 | 20.5 | 11.5 | 25 | Data sheet |
| 85ALITSM10C13 | M10 | 1.5 - 4 | 12.9 | 13 | 15.7 | 1.6 | 22 | 14.5 | 25 | Data sheet |
| 85ALITSM10L13 | M10 | 3.5 - 6.5 | 12.9 | 13 | 15.7 | 1.6 | 25 | 14.5 | 25 | Data sheet |
| 85ALITSM12C16 | M12 | 1.7 - 4.5 | 15.9 | 16 | 19 | 1.9 | 26 | 17.5 | 25 | Data sheet |
| 85ALITSM12L16 | M12 | 4 - 7.5 | 15.9 | 16 | 19 | 1.9 | 29 | 17.5 | 25 | Data sheet |
