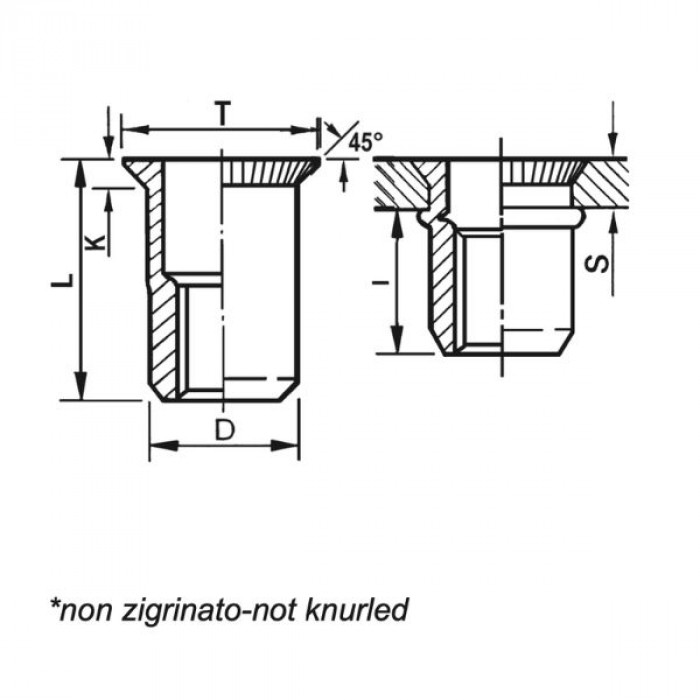

Cylindrical threaded inserts - Countersunk head
Code |
|
S GRIP |
D +0,07/-0,1 |
+0,1/-0
|
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85IXITSM03C | M3 | 1.7 - 3 | 4.9 | 5 | 8 | 1.5 | 11.5 | 5.5 | 1 | Data sheet |
| 85IXITSM04C | M4 | 1.5 - 3 | 5.9 | 6 | 9 | 1.51 | 12 | 7.5 | 4 | Data sheet |
| 85IXITSM05C | M5 | 1.5 - 3.5 | 6.9 | 7 | 10 | 1.5 | 13 | 7.8 | 8 | Data sheet |
| 85IXITSM06C | M6 | 1.5 - 4 | 8.9 | 9 | 12 | 1.5 | 15.5 | 9 | 15 | Data sheet |
| 85IXITSM08C | M8 | 2 - 4.5 | 10.9 | 11 | 14 | 1.5 | 18.5 | 12 | 26 | Data sheet |
| 85IXITSM10C12* | M10 | 1 - 4 | 11.9 | 12 | 15 | 1.5 | 18 | 10.5 | 45 | Data sheet |
| 85IXITSM10C13 | M10 | 2 - 5 | 12.9 | 13 | 16 | 1.5 | 21 | 13 | 45 | Data sheet |
Notes:
* not knurled
