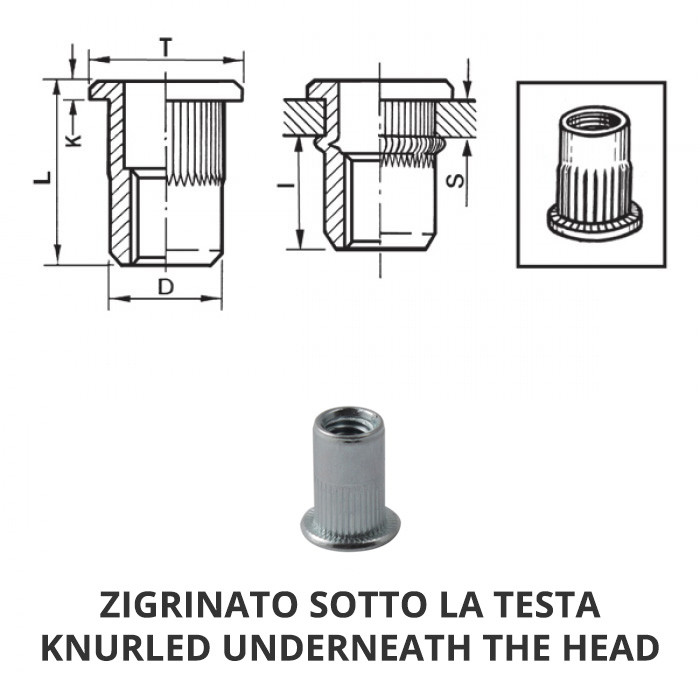

Knurled cylindrical threaded inserts - Flat head
Code |
|
S GRIP |
D +0,07/-0,1 |
+0,1/-0
|
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85IXITTGM03C | M3 | 0.5 - 2 | 4.9 | 5 | 7 | 0.9 | 11 | 5 | 2 | Data sheet |
| 85IXITTGM03L | M3 | 1.8 - 3 | 4.9 | 5 | 8 | 0.75 | 10 | 5.5 | 2 | Data sheet |
| 85IXITTGM04C | M4 | 0.5 - 2 | 5.9 | 6 | 9 | 0.8 | 10.5 | 6.5 | 5 | Data sheet |
| 85IXITTGM04L | M4 | 2.5 - 4 | 5.9 | 6 | 9 | 0.75 | 12.5 | 6.5 | 5 | Data sheet |
| 85IXITTGM05C | M5 | 0.5 - 2.5 | 6.9 | 7 | 10 | 1 | 13 | 8 | 8.5 | Data sheet |
| 85IXITTGM05L | M5 | 2 - 4 | 6.9 | 7 | 10 | 1 | 16 | 8 | 8.5 | Data sheet |
| 85IXITTGM06C | M6 | 0.5 - 3 | 8.9 | 9 | 12.3 | 1.3 | 15.5 | 9.2 | 15 | Data sheet |
| 85IXITTGM06L | M6 | 3.5 - 6 | 8.9 | 9 | 13 | 1.5 | 19 | 9 | 15 | Data sheet |
| 85IXITTGM08C | M8 | 1 - 3.5 | 10.9 | 11 | 14.5 | 1.5 | 18.5 | 11.5 | 26 | Data sheet |
| 85IXITTGM08L | M8 | 3 - 6 | 10.9 | 11 | 14.5 | 1.5 | 21 | 11.5 | 26 | Data sheet |
| 85IXITTGM10C12 | M10 | 0.8 - 3.5 | 11.9 | 12 | 16 | 1.7 | 19 | 10.5 | 50 | Data sheet |
| 85IXITTGM10L12 | M10 | 3.5 - 6 | 11.9 | 12 | 16 | 1.7 | 22 | 10.5 | 50 | Data sheet |
| 85IXITTGM10C13 | M10 | 1 - 4 | 12.9 | 13 | 17 | 1.6 | 21 | 13.5 | 50 | Data sheet |
| 85IXITTGM10L13 | M10 | 3 - 6 | 12.9 | 13 | 19 | 2 | 26 | 14.5 | 50 | Data sheet |
| 85IXITTGM12C16 | M12 | 1 - 4 | 15.9 | 16 | 23 | 2 | 25 | 16.5 | 80 | Data sheet |
| 85IXITTGM12L16 | M12 | 3.5 - 7 | 15.9 | 16 | 23 | 1.6 | 29 | 16.5 | 80 | Data sheet |
