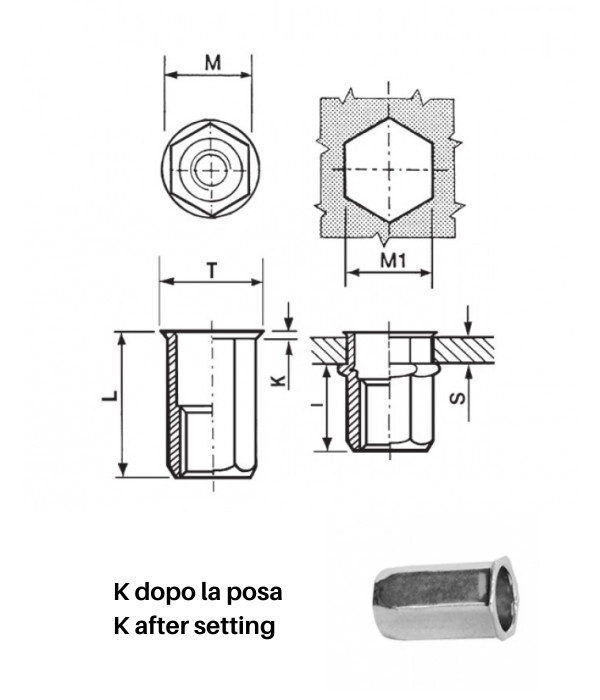

Hexagonal steel threaded inserts - Reduced countersunk Head
Code |
|
S GRIP |
M +0,07/-0,1 |
M1 +0,1/-0 |
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85ACIERM03C | M3 | 0.5 - 1.5 | 4.9 | 5 | 6 | 0.45 | 8.5 | 5 | 1 | Data sheet |
| 85ACIERM03L | M3 | 1.5 - 3 | 4.9 | 5 | 6 | 0.45 | 10.5 | 7 | 1 | Data sheet |
| 85ACIERM04C | M4 | 0.5 - 2.5 | 5.9 | 6 | 7 | 0.5 | 11 | 6.7 | 3 | Data sheet |
| 85ACIERM04L | M4 | 2.5 - 5 | 5.9 | 6 | 7 | 0.5 | 13.5 | 6.7 | 3 | Data sheet |
| 85ACIERM05C | M5 | 0.5 - 3 | 6.9 | 7 | 8 | 0.5 | 14.5 | 9 | 6 | Data sheet |
| 85ACIERM05L | M5 | 3 - 5 | 6.9 | 7 | 8 | 0.5 | 16 | 9 | 6 | Data sheet |
| 85ACIERM06C | M6 | 1 - 3.5 | 8.9 | 9 | 10 | 0.6 | 16 | 10 | 11 | Data sheet |
| 85ACIERM06L | M6 | 3.5 - 6 | 8.9 | 9 | 10 | 0.6 | 18 | 10 | 11 | Data sheet |
| 85ACIERM08C | M8 | 1 - 4 | 10.9 | 11 | 12 | 0.65 | 18 | 11.5 | 20 | Data sheet |
| 85ACIERM08L | M8 | 4 - 6 | 10.9 | 11 | 12 | 0.65 | 20 | 11.5 | 20 | Data sheet |
| 85ACIERM10C12 | M10 | 0.5 - 3.5 | 11.9 | 12 | 14.5 | 1 | 19 | 12.5 | 32 | Data sheet |
| 85ACIERM10C13 | M10 | 1 - 3.5 | 12.9 | 13 | 14.5 | 0.75 | 19 | 12.5 | 32 | Data sheet |
| 85ACIERM10L13 | M10 | 3.5 - 6 | 12.9 | 13 | 14.5 | 0.75 | 23.5 | 14.5 | 32 | Data sheet |
| 85ACIERM12C15 | M12 | 1 - 4 | 14.9 | 15 | 17.5 | 1.1 | 22.5 | - | 50 | Data sheet |
| 85ACIERM12C16 | M12 | 1 - 5 | 15.9 | 16 | 17.8 | 1.1 | 25 | - | 50 | Data sheet |
| 85ACIERM12L16 | M12 | 5 - 7.5 | 15.9 | 16 | 17.8 | 1.1 | 28 | - | 50 | Data sheet |
