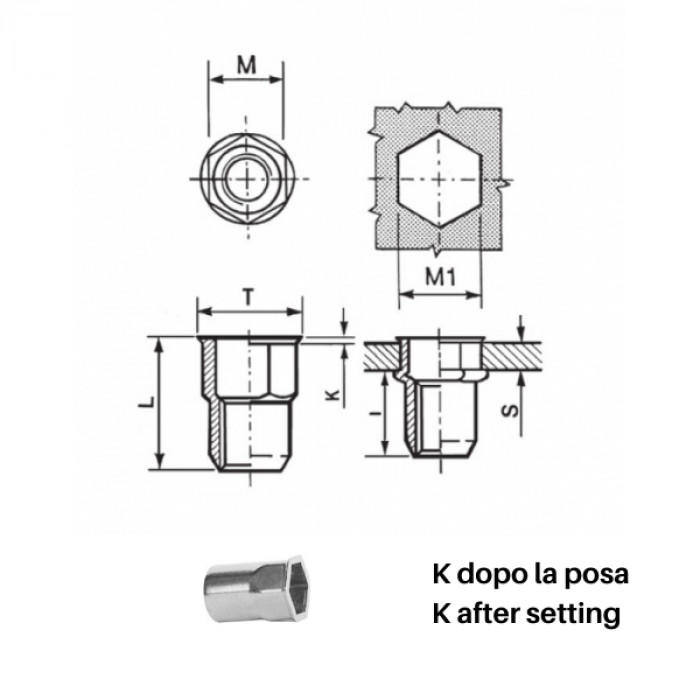

Semi-Hexagonal steel threaded inserts - Reduced countersunk head
Code |
|
S GRIP |
M +0,07-0,1 |
M1 +0,1/-0 |
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85ACIERSEM03C | M3 | 0.3 - 1.5 | 4.9 | 5 | 6 | 0.5 | 9 | 5.5 | 1 | Data sheet |
| 85ACIERSEM03L | M3 | 1.5 - 2.5 | 4.9 | 5 | 6 | 0.5 | 10 | 5.5 | 1 | Data sheet |
| 85ACIERSEM04C | M4 | 0.5 - 2 | 5.9 | 6 | 7 | 0.5 | 12 | 8.3 | 3 | Data sheet |
| 85ACIERSEM05C | M5 | 0.5 - 2.5 | 6.9 | 7 | 8 | 0.5 | 13 | 8.7 | 6 | Data sheet |
| 85ACIERSEM06C | M6 | 1 - 3.5 | 8.9 | 9 | 10 | 0.6 | 16 | 10.5 | 11 | Data sheet |
| 85ACIERSEM06L | M6 | 3-5,5 | 8,9 | 9 | 10 | 0,6 | 18 | 10,5 | 11 | Data sheet |
| 85ACIERSEM08C | M8 | 1 - 3.5 | 10.9 | 11 | 12 | 0.65 | 17.5 | 11.3 | 20 | Data sheet |
| 85ACIERSEM08L | M8 | 3.5 - 6 | 10.9 | 11 | 12 | 0.65 | 20 | 13 | 20 | Data sheet |
| 85ACIERSEM10C12 | M10 | 1 - 4 | 11.9 | 12 | 13.25 | 0.7 | 18.3 | 12.8 | 32 | Data sheet |
| 85ACIERSEM10C13 | M10 | 1 - 4 | 12.9 | 13 | 14.5 | 0.75 | 21 | 12.8 | 32 | Data sheet |
| 85ACIERSEM12C16 | M12 | 1.5 - 4 | 15.9 | 16 | 17.5 | 0.8 | 24 | 16 | 50 | Data sheet |
