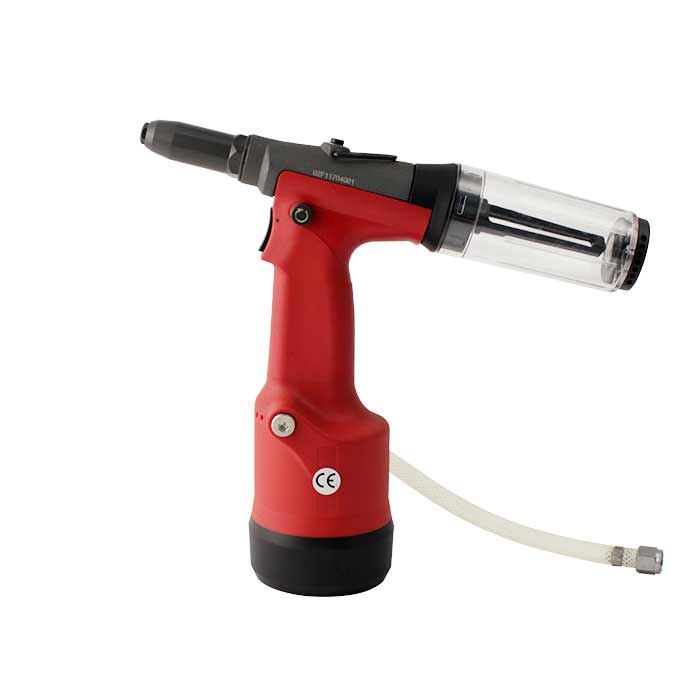

Oleopneumatic tool
|
Oleopneumatic Tool CODE |
Features PRESSURE REQUIRED |
WEIGHT | STROKE | TRACTION POWER |  |
|---|---|---|---|---|---|
| 02F1 | 5 - 7 Bar | 1,1 Kg | 18 mm | 7 KN | Technical sheet |
|
Rivet DIAMETER |
CAPACITY ALUMINIUM/STEEL |
STEEL/STEEL | COPPER/STEEL | STAINLESS STEEL/STAINLESS STEEL |
|---|---|---|---|---|
| 2,4 mm | ||||
| 3 - 3,2 mm | ||||
| 4 mm | ||||
| 4,8 - 5 mm |
Spares
|
Code |
Product |
Features |
|---|---|---|
| 02CLAMPJAWSF1 | Spare clamping jaws | No. 1 Set (3Pcs) |
| 02U24F1 | Spare nosepieces | Diam. 2,4 mm |
| 02U32F1 | Spare nosepieces | Diam. 3,2 mm |
| 02U40F1 | Spare nosepieces | Diam. 4,0 mm |
| 02U48F1 | Spare nosepieces | Diam. 4,8 - 5 mm |
