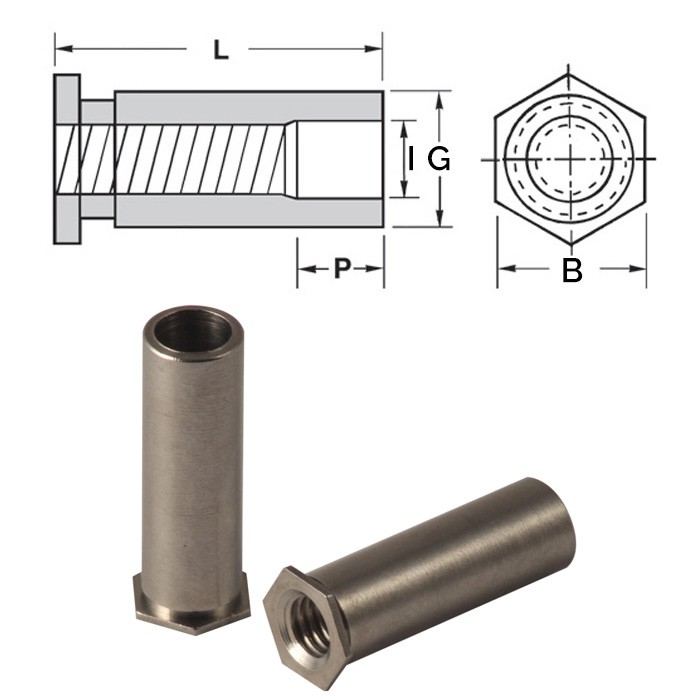

Self-clinching standoffs for sheet metal
sheet hardness max 90 HRB
Code |
Thread |
B |
Hole Size +0.08 |
G -0.13 |
P |
L |
I +/-0.13 |
Min. Sheet |
Minimum |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 15CFSOSM2.5-03A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 0 | 3 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-04A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 0 | 4 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-05A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 0 | 5 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-06A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 0 | 6 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-08A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 0 | 8 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-10A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 4 | 10 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-12A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 4 | 12 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-14A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 4 | 14 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-16A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 8 | 16 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-18A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 8 | 18 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM2.5-20A4 | M2.5x0.45 | 4.8 | 4.2 | 4.19 | 8 | 20 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-03A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 0 | 3 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-04A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 0 | 4 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-05A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 0 | 5 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-06A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 0 | 6 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-08A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 0 | 8 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-10A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 4 | 10 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-12A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 4 | 12 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-14A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 4 | 14 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-16A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 8 | 16 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-18A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 8 | 18 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-20A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 8 | 20 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-22A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 11 | 22 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOSM3-25A4 | M3x0.5#hole 4.2 | 4.8 | 4.2 | 4.19 | 11 | 25 | 3.2 | 1 | 6 | Data sheet |
| 15CFSOS35M3-03A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 0 | 3 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-04A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 0 | 4 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-05A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 0 | 5 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-06A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 0 | 6 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-08A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 0 | 8 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-10A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 4 | 10 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-12A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 4 | 12 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-14A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 4 | 14 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-16A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 8 | 16 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-18A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 8 | 18 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-20A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 8 | 20 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-22A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 11 | 22 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOS35M3-25A4 | M3x0.5#hole 5.4 | 6.4 | 5.4 | 5.38 | 11 | 25 | 3.2 | 1 | 7 | Data sheet |
| 15CFSOSM4-03A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 0 | 3 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-04A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 0 | 4 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-05A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 0 | 5 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-06A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 0 | 6 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-08A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 0 | 8 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-10A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 4 | 10 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-12A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 4 | 12 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-14A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 4 | 14 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-16A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 8 | 16 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-18A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 8 | 18 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-20A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 8 | 20 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-22A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 11 | 22 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM4-25A4 | M4x0.7 | 7.9 | 7.2 | 7.11 | 11 | 25 | 4.8 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-03A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 0 | 3 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-04A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 0 | 4 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-05A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 0 | 5 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-06A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 0 | 6 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-08A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 0 | 8 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-10A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 4 | 10 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-12A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 4 | 12 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-14A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 4 | 14 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-16A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 8 | 16 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-18A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 8 | 18 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-20A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 8 | 20 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-22A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 11 | 22 | 5.2 | 1.3 | 8 | Data sheet |
| 15CFSOSM5-25A4 | M5x0.8 | 7.9 | 7.2 | 7.11 | 11 | 25 | 5.2 | 1.3 | 8 | Data sheet |
