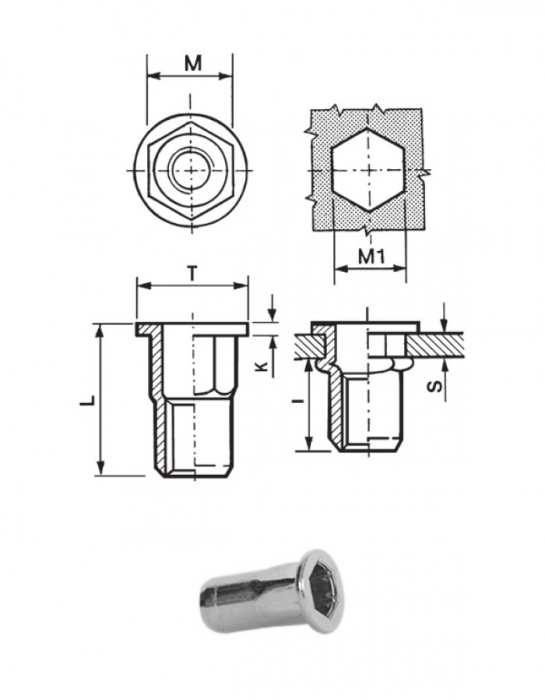

Semi-Hexagonal threaded inserts - Flat head
Code |
|
S GRIP |
M +0,07/-0,1 |
M1 +0,1/-0 |
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85IXITTSEM03C | M3 | 0.3 - 1.8 | 4.9 | 5 | 8 | 0.75 | 9 | 5.5 | 2 | Data sheet |
| 85IXITTSEM03L | M3 | 1.8 - 3 | 4.9 | 5 | 8 | 0.75 | 10 | 5.5 | 2 | Data sheet |
| 85IXITTSEM04C | M4 | 0.5 - 2 | 5.9 | 6 | 9 | 0.8 | 11 | 7.2 | 5 | Data sheet |
| 85IXITTSEM04L | M4 | 2 - 4 | 5.9 | 6 | 9 | 0.75 | 12.5 | 6 | 5 | Data sheet |
| 85IXITTSEM05C | M5 | 0.5 - 2.5 | 6.9 | 7 | 10 | 1 | 12 | 7.5 | 8.5 | Data sheet |
| 85IXITTSEM05L | M5 | 2 - 4 | 6.9 | 7 | 10 | 1 | 15,5 | 8 | 8.5 | Data sheet |
| 85IXITTSEM06C | M6 | 0.5 - 3 | 8.9 | 9 | 12.7 | 1.3 | 15.5 | 9 | 15 | Data sheet |
| 85IXITTSEM06L | M6 | 3 - 6 | 8.9 | 9 | 13 | 1.5 | 19 | 9 | 15 | Data sheet |
| 85IXITTSEM08C | M8 | 1 - 3.5 | 10.9 | 11 | 16 | 1.5 | 18 | 10 | 26 | Data sheet |
| 85IXITTSEM08L | M8 | 3 - 5.5 | 10.9 | 11 | 16 | 1.5 | 20 | 10 | 26 | Data sheet |
| 85IXITTSEM10C12 | M10 | 0.8 - 3.5 | 11.9 | 12 | 16 | 1.7 | 19 | 10.5 | 50 | Data sheet |
| 85IXITTSEM10L12 | M10 | 3.5 - 6 | 11.9 | 12 | 16 | 1.7 | 22 | 10.5 | 50 | Data sheet |
| 85IXITTSEM10C13 | M10 | 1 - 3.5 | 12.9 | 13 | 18 | 1.7 | 21 | 13.2 | 50 | Data sheet |
| 85IXITTSEM10L13 | M10 | 3 - 5 | 12.9 | 13 | 17 | 2 | 24 | 14.5 | 50 | Data sheet |
| 85IXITTSEM12C16 | M12 | 2 - 4 | 15.9 | 16 | 23 | 2 | 28 | 16.5 | 80 | Data sheet |
| 85IXITTSEM12L16 | M12 | 3.5 - 7 | 15.9 | 16 | 23 | 2 | 29 | 16.5 | 80 | Data sheet |
