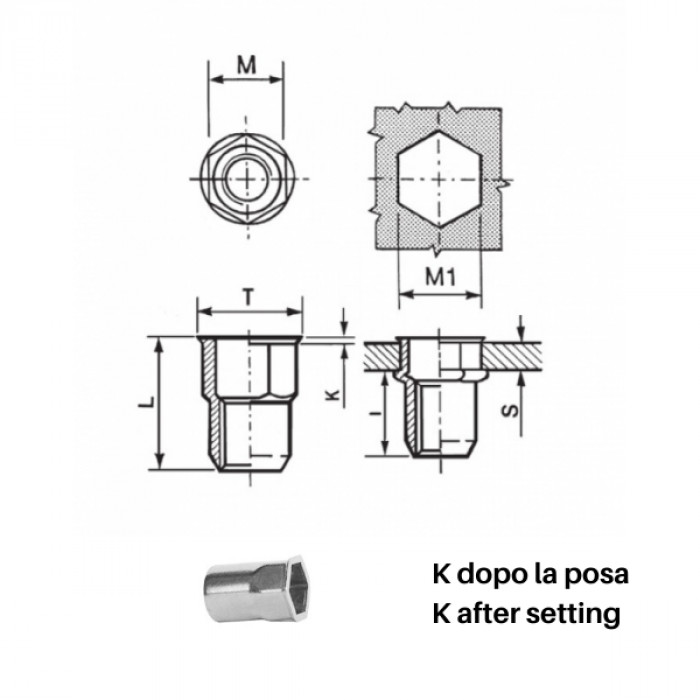

Semi-hexagonal threaded inserts - Reduced countersunk head
Code |
|
S GRIP |
M +0,07/-0,1 |
M1 +0,1/-0 |
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85IXIERSEM03C | M3 | 0.3 - 1.5 | 4.9 | 5 | 6 | 0.5 | 9 | 5.5 | 1 | Data sheet |
| 85IXIERSEM03L | M3 | 1.5 - 2.5 | 4.9 | 5 | 6 | 0.5 | 11 | 5.5 | 1 | Data sheet |
| 85IXIERSEM04C | M4 | 0.5 - 2 | 5.9 | 6 | 7 | 0.5 | 12 | 7.5 | 3 | Data sheet |
| 85IXIERSEM04L | M4 | 2 - 3 | 5.9 | 6 | 7 | 0.5 | 14 | 6 | 3 | Data sheet |
| 85IXIERSEM05C | M5 | 0.5 - 2.5 | 6.9 | 7 | 8 | 0.5 | 13 | 8 | 6 | Data sheet |
| 85IXIERSEM05L | M5 | 2.5 - 4 | 6.9 | 7 | 8 | 0.5 | 14.5 | 6.8 | 6 | Data sheet |
| 85IXIERSEM06C | M6 | 0.5 - 3 | 8.9 | 9 | 10 | 0.6 | 16 | 9.2 | 11 | Data sheet |
| 85IXIERSEM06L | M6 | 3 - 5.5 | 8.9 | 9 | 10 | 0.6 | 18 | 11 | 11 | Data sheet |
| 85IXIERSEM08C | M8 | 1 - 3.5 | 10.9 | 11 | 12 | 0.65 | 17.5 | 10 | 20 | Data sheet |
| 85IXIERSEM08L | M8 | 3.5 - 5.5 | 10.9 | 11 | 12 | 0.65 | 19.5 | 14 | 20 | Data sheet |
| 85IXIERSEM10C12 | M10 | 0.8 - 3 | 11.9 | 12 | 13.5 | 0.8 | 18.5 | 11.2 | 32 | Data sheet |
| 85IXIERSEM10L12 | M10 | 2 - 4.5 | 11.9 | 12 | 13.5 | 0.8 | 19.5 | 11.2 | 32 | Data sheet |
| 85IXIERSEM10C13 | M10 | 1 - 4 | 12.9 | 13 | 14.5 | 0.75 | 21 | 13 | 32 | Data sheet |
| 85IXIERSEM10L13 | M10 | 3.5 - 6 | 12.9 | 13 | 14.5 | 0.75 | 23 | 15 | 32 | Data sheet |
| 85IXIERSEM12C16 | M12 | 1 - 4 | 15.9 | 16 | 17.5 | 0.8 | 24 | 16 | 50 | Data sheet |
| 85IXIERSEM12L16 | M12 | 4 - 6 | 15.9 | 16 | 17.5 | 0.8 | 27 | 19 | 50 | Data sheet |
