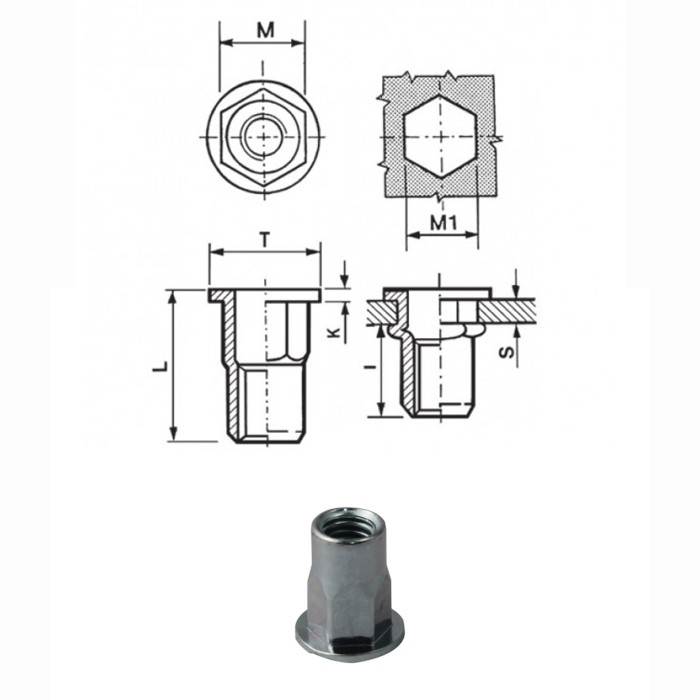

Semi-hexagonal steel threaded inserts - Flat head
Code |
|
S GRIP |
M +0,07-0,1 |
M1 +0,1/-0 |
T +/-0,5 |
K +/-0,15 |
L +/-0,5 |
I ~ |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 85ACITTSEM03C | M3 | 0.5 - 1.5 | 4.9 | 5 | 7.2 | 0.8 | 8.5 | 5.5 | 2 | Data sheet |
| 85ACITTSEM04C | M4 | 0.5 - 2 | 5.9 | 6 | 9 | 0.8 | 11 | 6.5 | 5 | Data sheet |
| 85ACITTSEM05C | M5 | 0.5 - 3 | 6.9 | 7 | 10 | 1 | 13 | 8 | 8.5 | Data sheet |
| 85ACITTSEM05L | M5 | 3 - 5.5 | 6.9 | 7 | 10 | 0.8 | 16 | 11 | 8.5 | Data sheet |
| 85MT15IV* | M6 | 0.5 - 4 | 8.9 | 9 | 12 | 1.5 | 16.2 | 8.5 | 15 | Data sheet |
| 85ACITTSEM06L | M6 | 3 - 5.5 | 8.9 | 9 | 13 | 1.5 | 18.5 | 10.5 | 15 | Data sheet |
| 85MSCL | M8 | 1 - 4 | 10.9 | 11 | 15.9 | 1.5 | 18.2 | 10.5 | 26 | Data sheet |
| 85ACITTSEM08L | M8 | 3,5 - 5,5 | 10.9 | 11 | 16 | 1.5 | 21 | 12.5 | 26 | Data sheet |
| 85ACITTSEM10C12 | M10 | 1 - 3.5 | 11.9 | 12 | 16 | 1.6 | 19 | 12 | 50 | Data sheet |
| 85ACITTSEM10C13 | M10 | 0.5 - 3.5 | 12.9 | 13 | 17 | 1.8 | 21 | 12 | 50 | Data sheet |
| 85ACITTSEM12C16 | M12 | 2 - 5 | 15.9 | 16 | 23 | 2.2 | 27.5 | 16.5 | 80 | Data sheet |
Notes:
*Steel Zinc Plated 7IV
