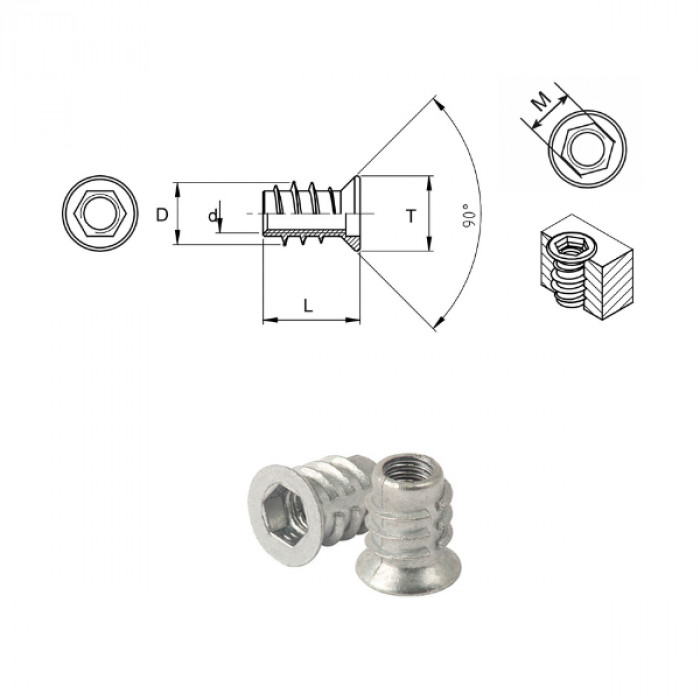

Self-tapping zamac threaded inserts BZ type

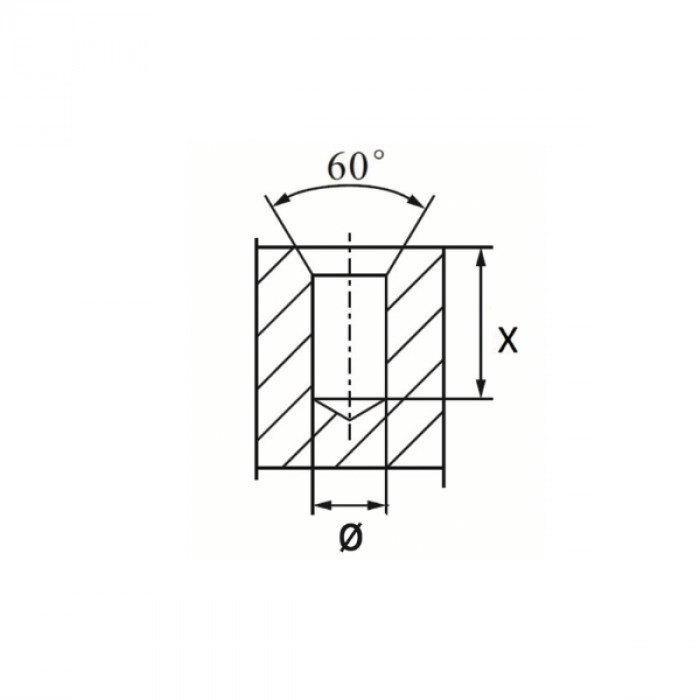

Code	M	T	L	D	d int. thread	Ø	X
86BZM410	4	9	10	8	M 4 x 0.7	5.5 - 6	13	Data sheet
86BZM513	5	12	13	10	M 5 x 0.8	7.7 - 8.2	16	Data sheet
86BZM612	6	12	12	10	M 6 x 1	7.7 - 8.2	15	Data sheet
86BZM613	6	12	13	10	M 6 x 1	7.7 - 8.2	16	Data sheet
86BZM614	6	12	14	10	M 6 x 1	7.7 - 8.2	17	Data sheet
86BZM615	6	12	15	10	M 6 x 1	7.7 - 8.2	18	Data sheet
86BZM617	6	12	17	10	M 6 x 1	7.7 - 8.2	20	Data sheet
86BZM620	6	12	20	10	M 6 x 1	7.7 - 8.2	23	Data sheet
86BZM624	6	12	24	10	M 6 x 1	7.7 - 8.2	27	Data sheet
86BZM813	8	14	13	12.5	M 8 x 1.25	9.7 - 10.2	16	Data sheet
86BZM815	8	14	15	12.5	M 8 x 1,25	9.7 - 10.2	18	Data sheet
86BZM817	8	14	17	12.5	M 8 x 1.25	9.7 - 10.2	20	Data sheet
86BZM820	8	14	20	12.5	M 8 x 1.25	9.7 - 10.2	23	Data sheet
86BZM822	8	14	22	12.5	M 8 x 1.25	9.7 - 10.2	25	Data sheet
86BZM824	8	14	24	12.5	M 8 x 1.25	9.7 - 10.2	27	Data sheet
86BZM828	8	14	28	12.5	M 8 x 1.25	9.7 - 10.2	31	Data sheet
86BZM1016	10	17	16	15.3	M 10 x 1.5	12.4 - 12.9	20	Data sheet
86BZM1017	10	17	17	15.3	M 10 x 1.5	12.4 - 12.9	21	Data sheet
86BZM1018	10	17	18	15.3	M 10 x 1.5	12.4 - 12.9	22	Data sheet
86BZM1020	10	17	20	15.3	M 10 x 1.5	12.4 - 12.9	24	Data sheet
86BZM1025	10	17	25	15.3	M 10 x 1.5	12.4 - 12.9	29	Data sheet
